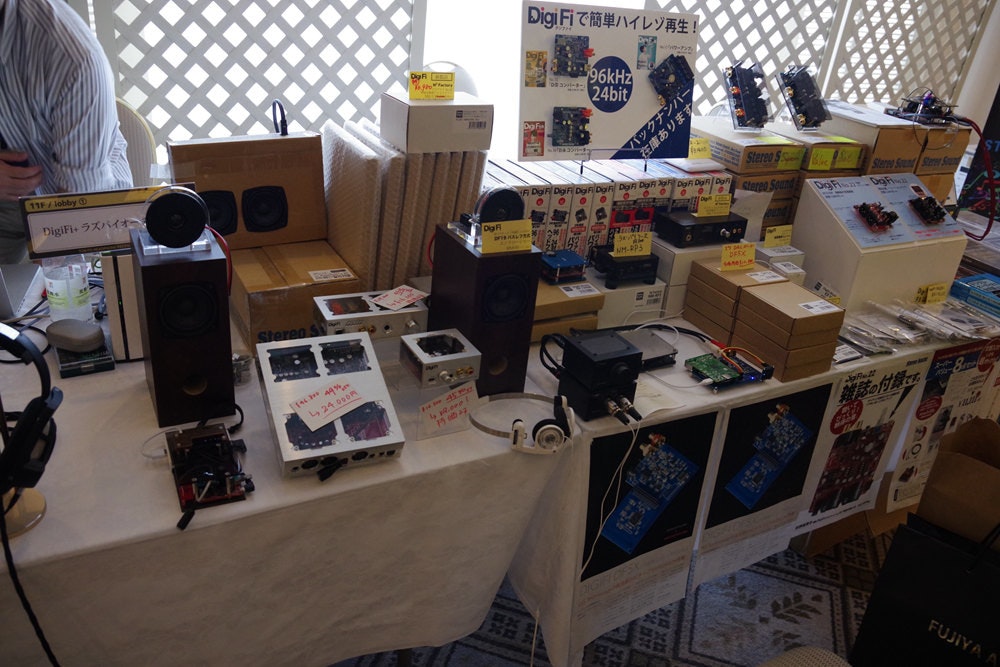

日本至今還有不少真對音響 DIY 相關的刊物,而耳機祭當中, Stereo Sound 出版社旗下的 DigiFi 也在它們攤位擺放近期多本提供附錄的刊物套件,與透過這些套件搭配樹莓派等構成音樂播放系統,還有提供這些套件可用的精品級外殼。

Electronic engineering, Electronics, Electronic component, Electrical network, Engineering, Electrical engineering, electronics, technology, electronics, electronic engineering, electronics accessory, electronic component, electrical network, electronic device, machine

Microcontroller, Electronic engineering, Electronics, Sound, Electronic Musical Instruments, Audio, Electrical network, Engineering, Electrical engineering, electronics, electronic instrument, electronics, electronic engineering, technology, electronic device, audio equipment, electrical network, circuit component, microcontroller, sound

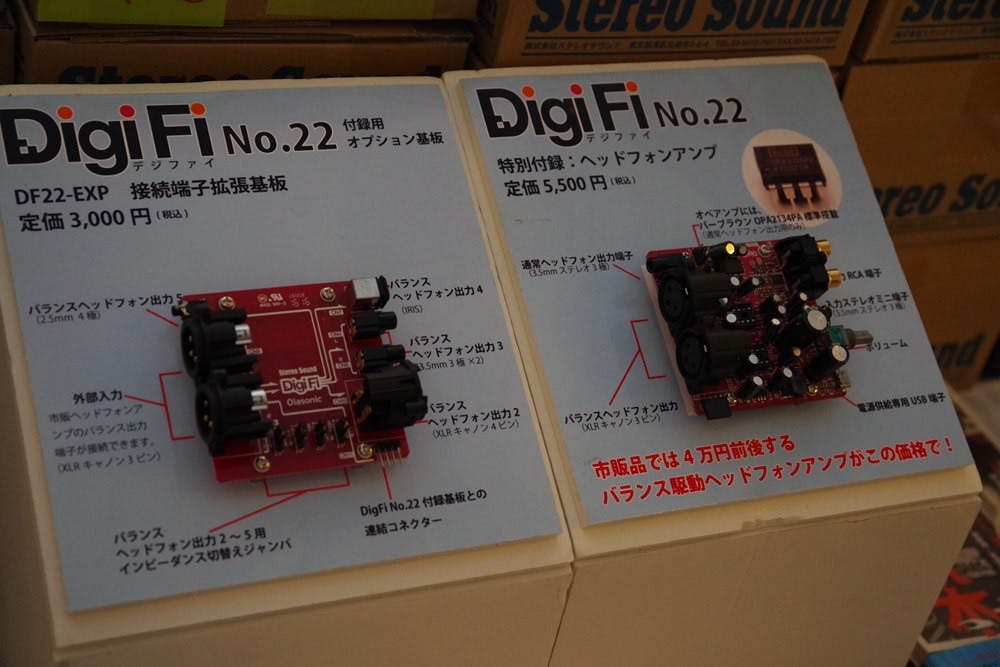

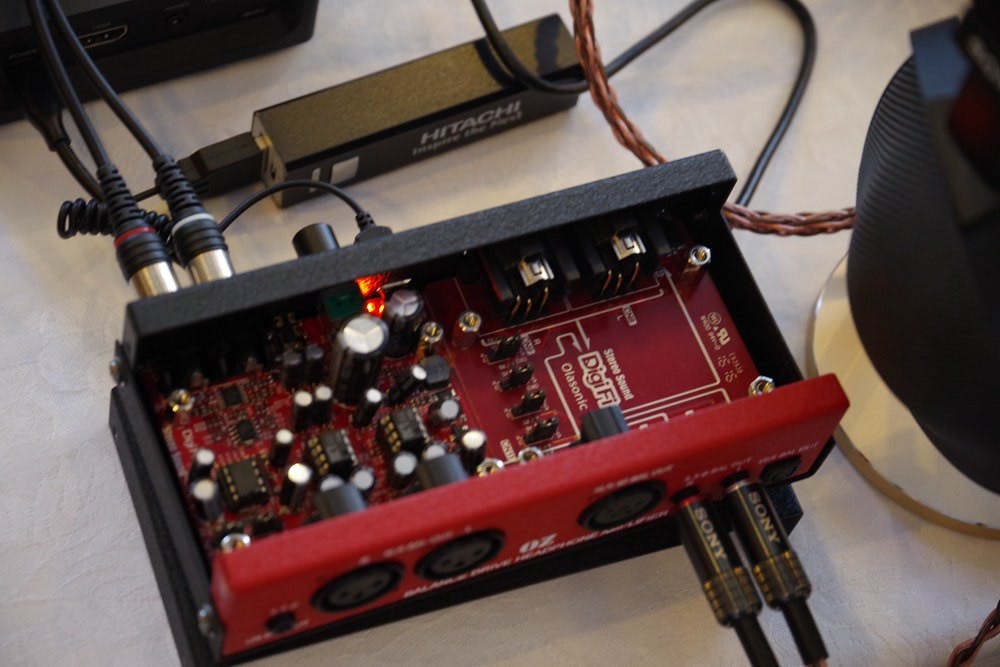

其中較為矚目以及與活動相關的應該是這一套耳機擴大機套件,要構成完整版本須要購買雜誌本體搭配輸出介面擴充板,否則本體就只有提供 3.5mm 單端與雙 3pin XLR 平衡兩組,搭配擴充板之後則追加雙 3.5mm 平衡、 4Pin XLR 平衡、方型 4pin (印象中是先前 ALO 隨身擴大機使用)平衡與 2.5mm 四極平衡等輸出功能,同時單端與平衡各有獨立的 OP 配置,可替換 OP 調音,號稱實力可上打 4 萬日幣等級擴大機,但標準套件(含本體加上擴充板)為 12,800 日幣,不過要注意的是圖上精美的外殼並不便宜,幾乎都是套件的兩倍價格,而且圖上這組也已經缺貨。

Electronics, Gadget, electronics, electronic device, technology, electronics, gadget

Audio, Electronic Musical Instruments, Electronics, electronics, electronic device, technology, electronics, electronics accessory, electronic instrument, audio equipment, cable, audio

Electronics, Electronic engineering, Engineering, electronics, technology, electronics, machine, electronics accessory, electronic engineering, electronic device

Audio, Electronics, Electronic Musical Instruments, Gadget, electronics, electronic device, technology, electronics, gadget, audio equipment, electronic instrument

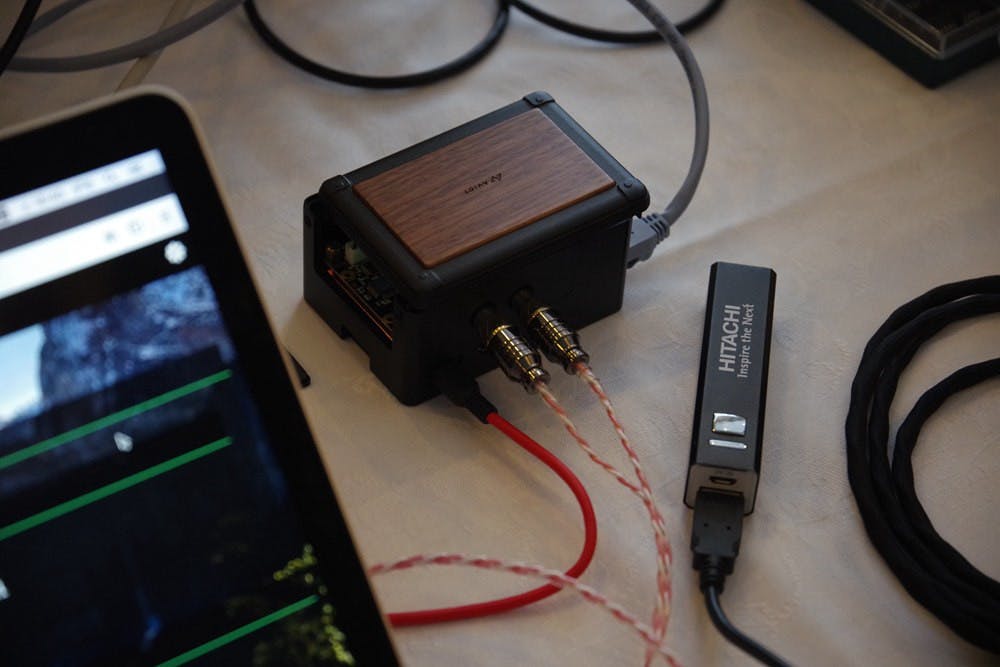

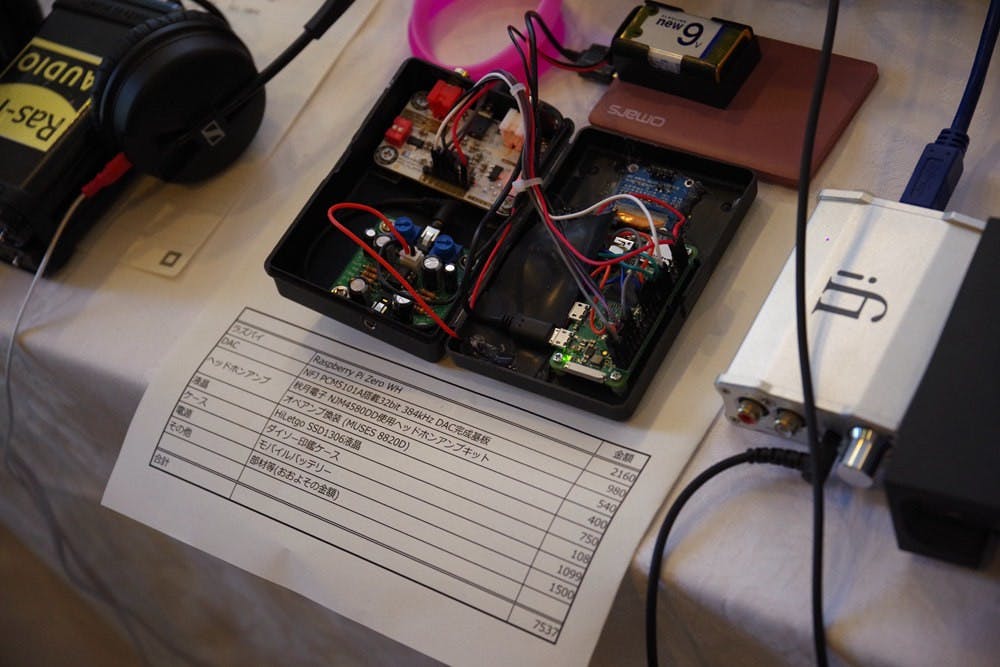

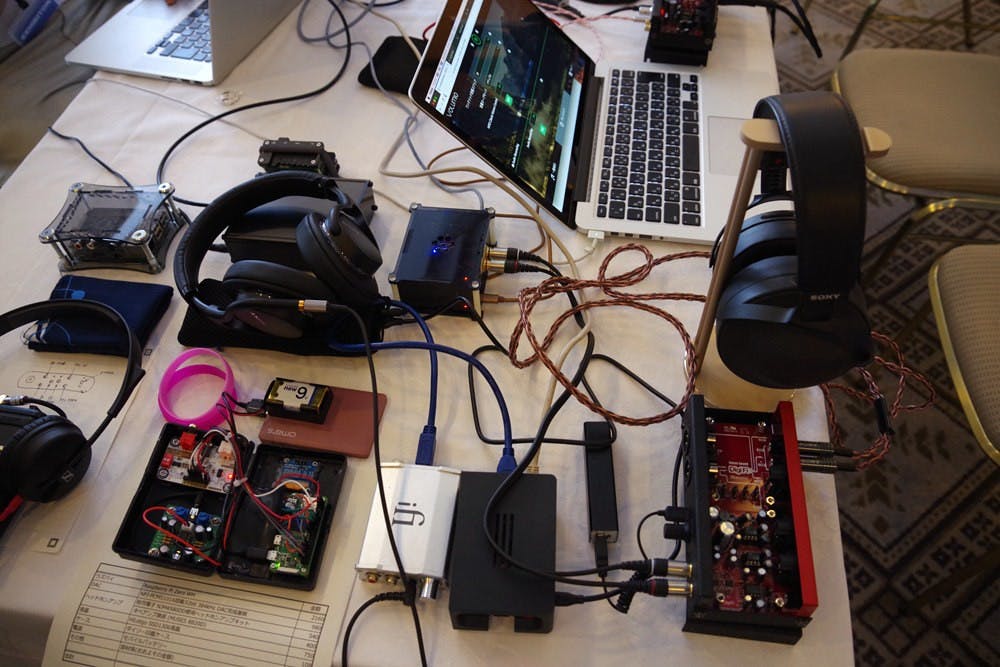

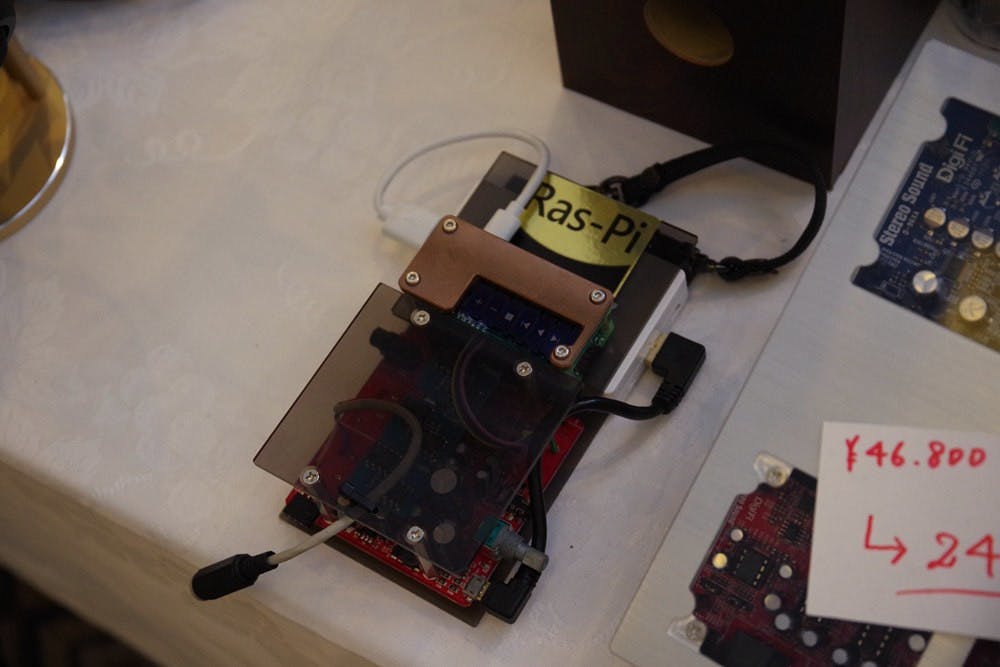

另外攤位也展示不少樹莓派的應用,包括將 Pi Zero 打造成小型的攜帶播放機,以及透過各式隔離設計、獨立電源供應器、 USB 雜訊過濾器等提升音質的玩法。

Microcontroller, Computer hardware, Electronics, Electronic engineering, Electronic component, Electronic circuit, Network Cards & Adapters, Motherboard, Electrical network, ROM, electronic engineering, electronic engineering, technology, electronic device, microcontroller, electronics, circuit prototyping, computer component, motherboard, circuit component, computer hardware

Game, , Hobby, Video game, games, games, hobby, space, recreation

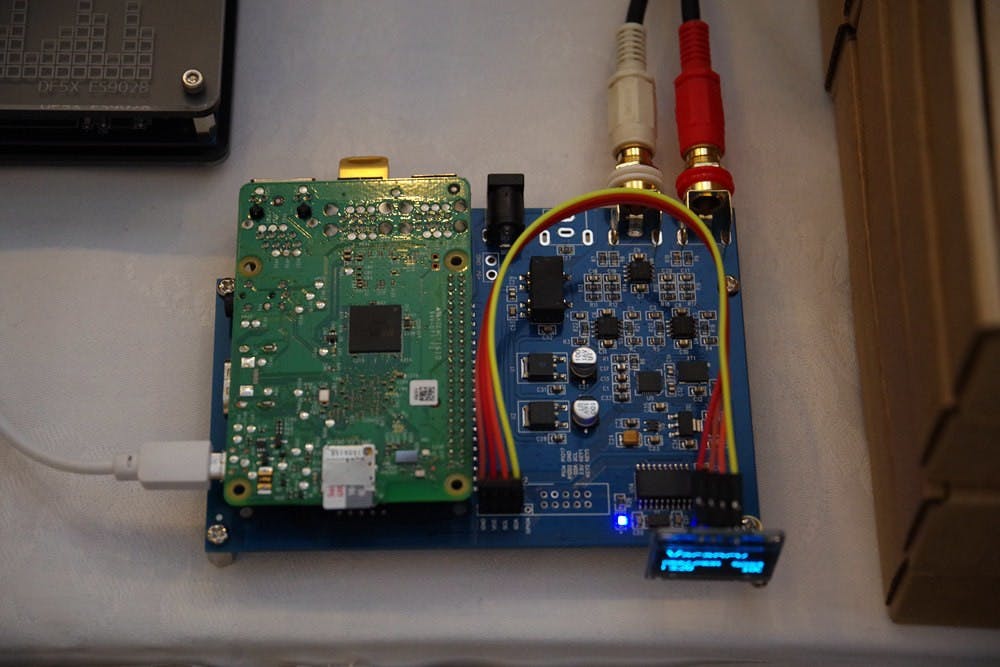

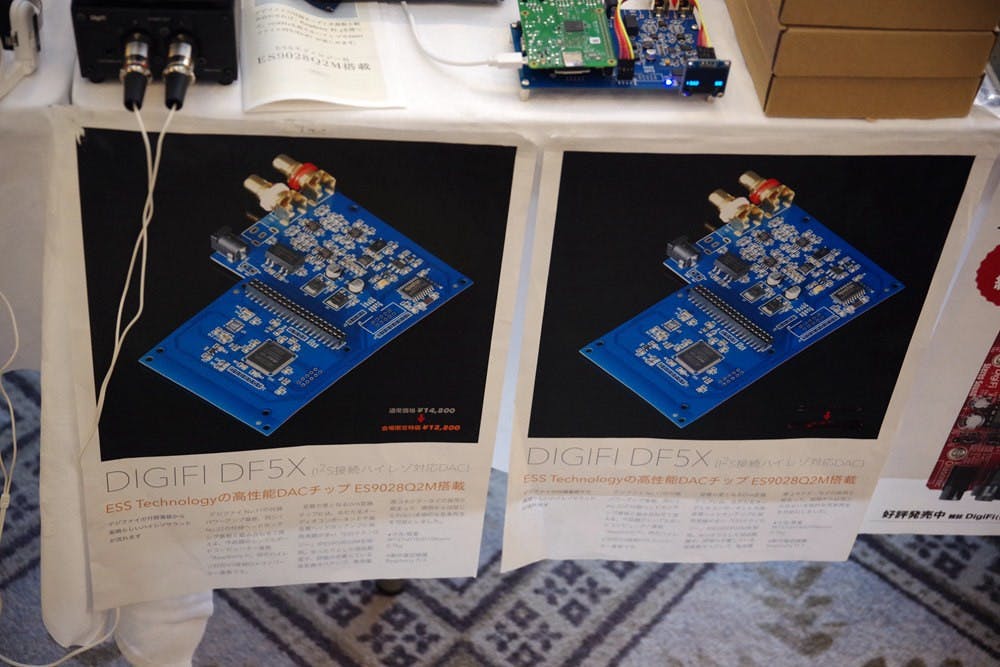

另外還針對樹莓派提供名為 DF5X 的 I2S DAC 擴充板,不同於許多平價擴充板多為 TI 的 PCM5122 或是 ESS 的 ES9023 ,這張擴充板選擇更高階的 ES9028Q2M ,同時電路板面積也相當大,應該會有不錯的抗干擾能力,電路板上還保留可擴充 LCD 螢幕的 Pin 角,只要購買螢幕並焊上就可使用。要注意的是由於 Volumio 2 還未原生支援 ES9028Q2M ,需要至官網下載驅動程式的 Zip 檔案,並透過 Volumio 2 的手動插件安裝的方式安裝驅動才能正常使用。
