紅藍聯手的威力小鋼炮,能夠暢玩 AAA 遊戲大作的 Intel NUC8i7HVK 準系統

2018.10.26 05:28PM
Electronics Accessory, Electronics, Electronic Musical Instruments, Audio, Product design, Product, Design, Computer, Computer hardware, Audio signal, electronics, technology, electronic device, electronics, electronics accessory, product, audio equipment, computer component, electronic instrument

Intel 在距今一年前,宣布推出結合 Intel CPU 搭配 AMD GPU 的 Kaby Lake G 處理器,希冀帶來更高效率的高性能處理器搭配高性能 GPU 組合,並可讓散熱機構更為簡化,而在今年,雖在筆記型電腦平台還是罕見,不過 Intel 自家的迷你準系統 NUC 也推出搭載 Kaby Lake G 的版本,這次要介紹的 NUC8i7HVK 就屬於其中的最高規格版本。

Electronics Accessory, Electronics, Electronic Musical Instruments, Product design, Product, Design, electronics accessory, technology, electronics accessory, electronic device, electronics, product, electronic instrument

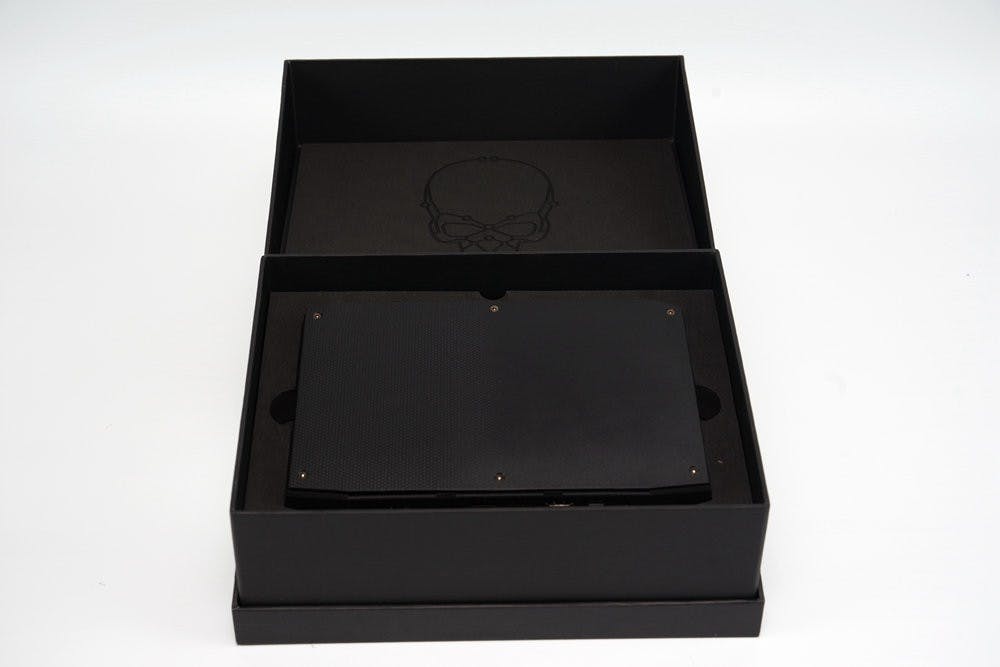

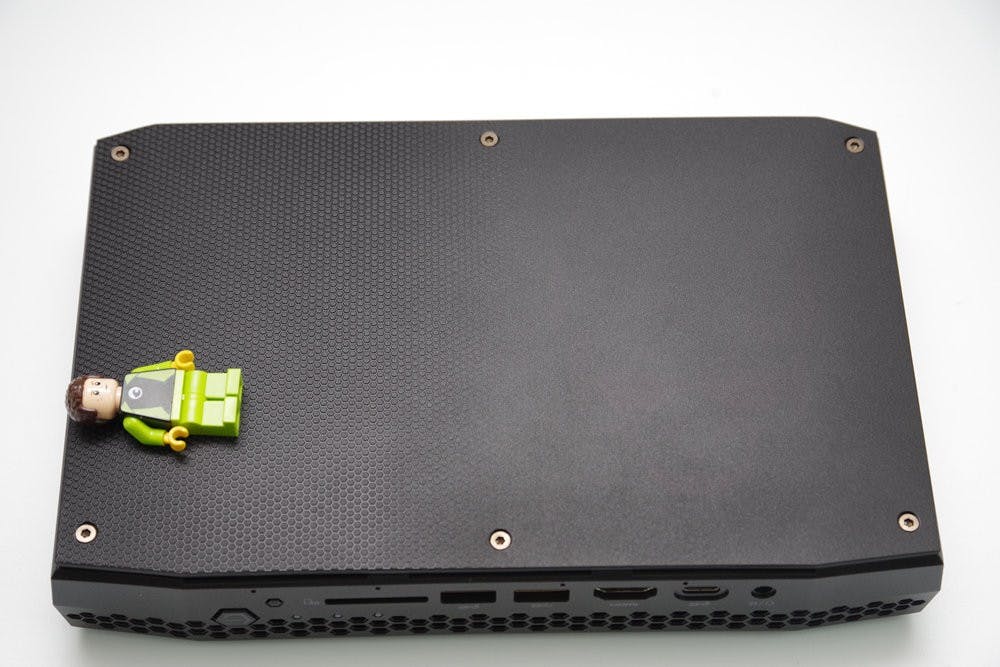

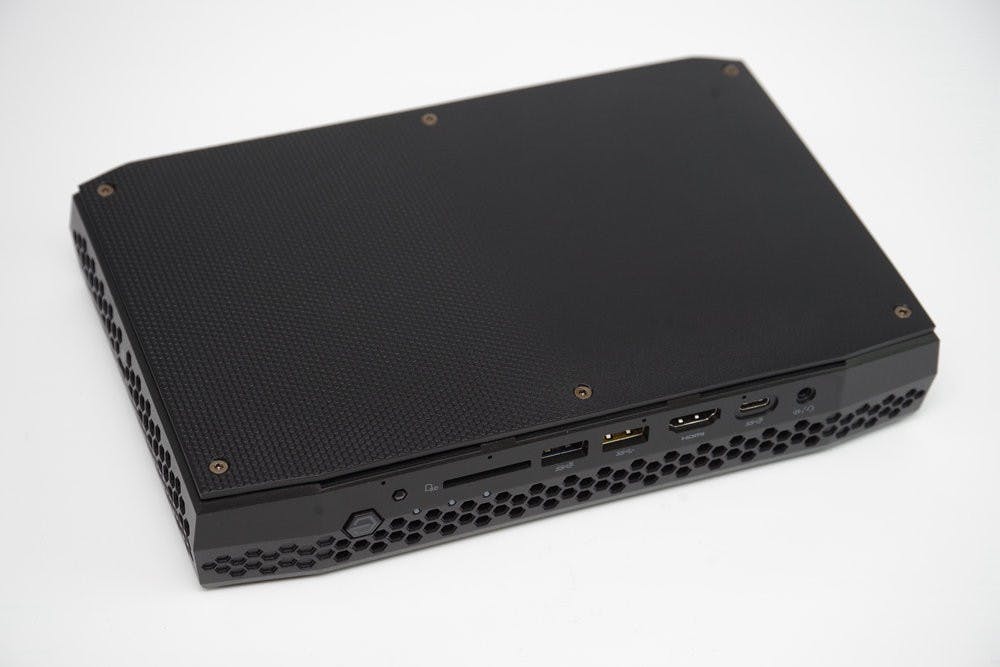

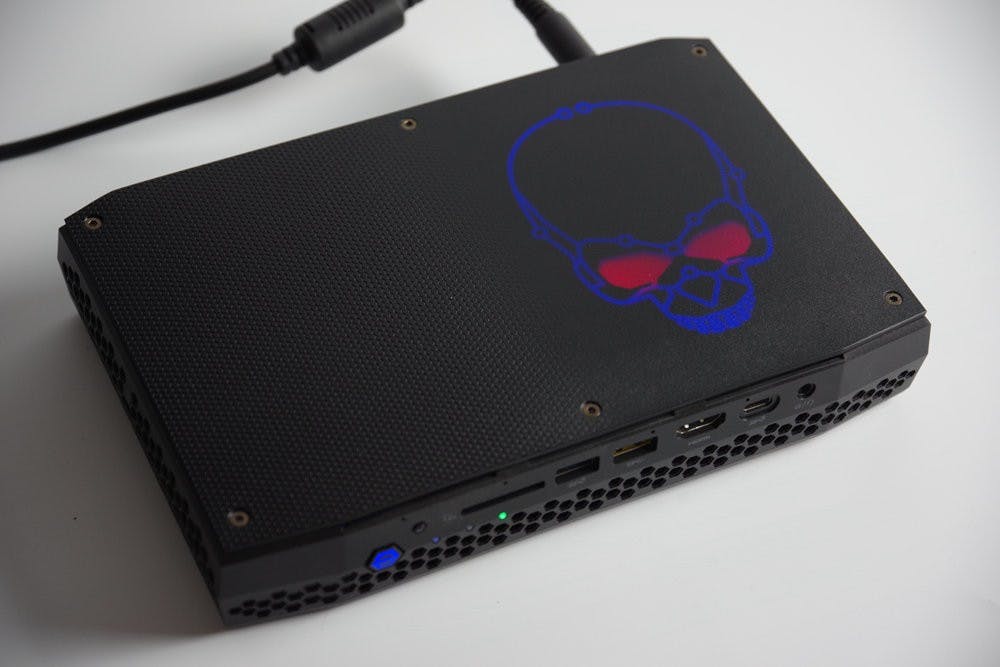

NUC8i7HVK 採用類似 NUC6i7KYK Skull cayon 的造型設計,較偏向長方形,有點像是書本的大小,而非一般 NUC 的方正外型,然而雖與 Skull cayon 相似,不過 NUC8i7HVK 的內裡可沒這麼簡單,畢竟 Skul cayon 仍是一顆標準的 Intel H 系列處理器,但 NUC8i7HVK 所採用的是具備 i7 處理器與 AMD RX VEGA M GPU 的 i7-8809G 。

是紅藍聯手的威力小鋼炮,能夠暢玩 AAA 遊戲大作的 Intel NUC8i7HVK 準系統這篇文章的第2圖

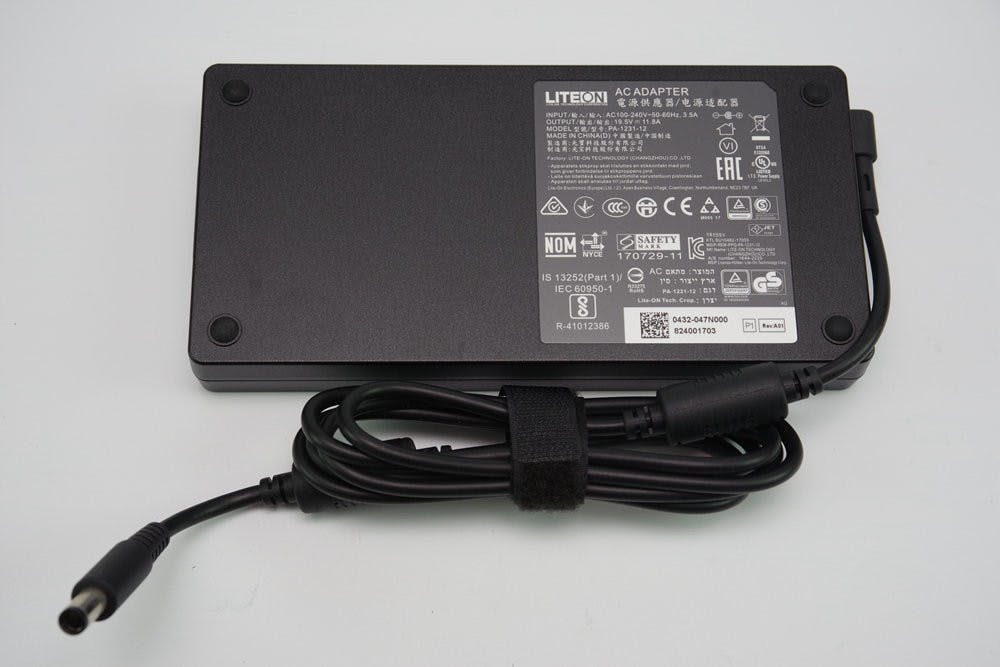

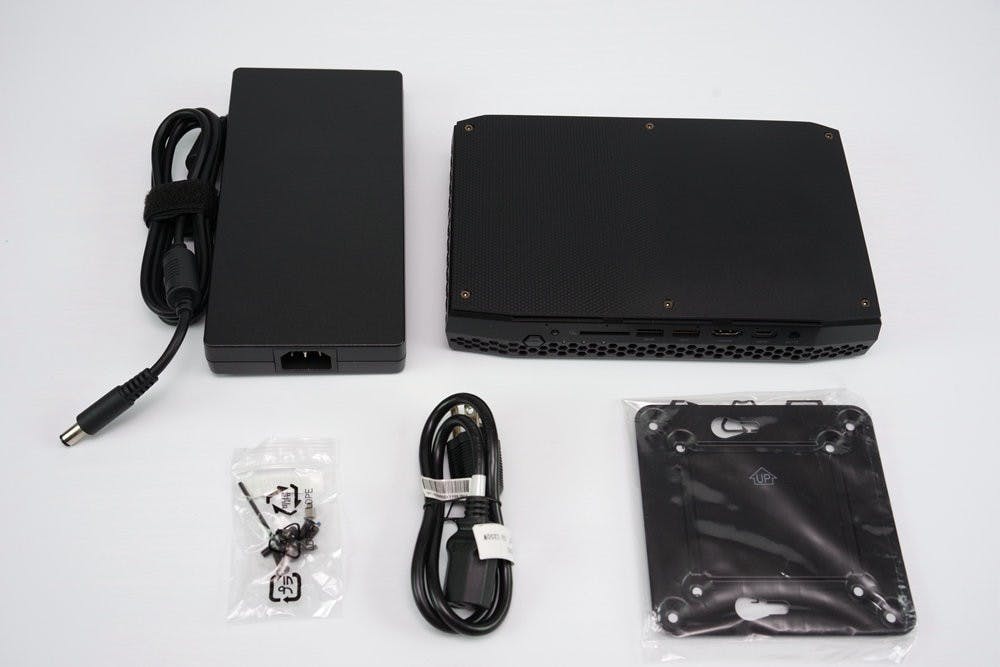

雖然是迷你系統,不過 i7-8809G 可不是甚麼省油的燈,由於整合高效能的 CPU 與 GPU ,其耗電量達到 100W ,故原廠搭配了一顆幾乎與主機一樣大的變壓器,嚴格來說可以把這套準系統視為沒有螢幕、鍵盤、觸控板與內建電池的高效能電競筆電看待,而 Intel 也強調藉由高度整合的 i7-8809G ,可比採用獨立方案的平台更省電一些。

是紅藍聯手的威力小鋼炮,能夠暢玩 AAA 遊戲大作的 Intel NUC8i7HVK 準系統這篇文章的第3圖

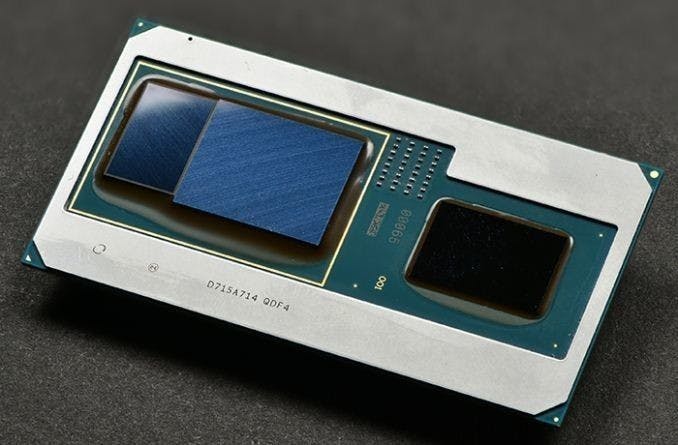

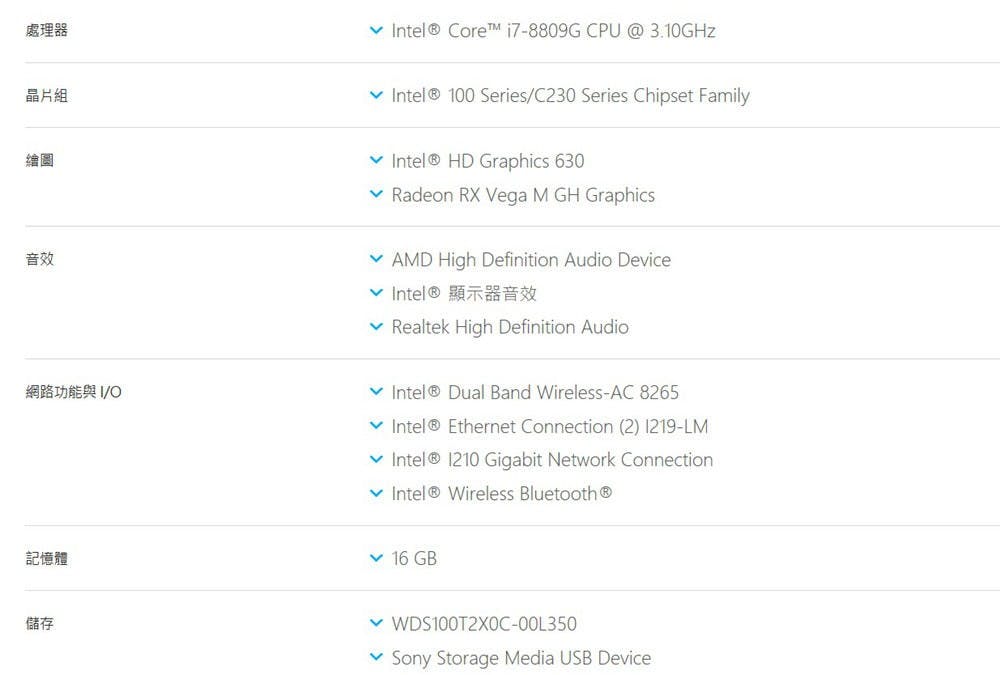

i7-8809G 的真身,可說是基於 i7-7920HQ 的變種產品,從官方的資訊,兩者皆為 4C8T ,基礎時脈為 3.1GHz ,可 Boost 到 4.2GHz ,同時具備 8MB 快取記憶體,搭配的原生 GPU 為 Intel HD Graphics 630 ,但最關鍵的是透過封裝技術,再將來自 AMD 、具備 4GB HBM 記憶體的 Radeon RX VEGA M GH GPU 與其嵌合在同一顆晶片座上,並具備 100W TDP 。

Product design, Product, Design, box, product, box

Naučná stezka Jáchymovské peklo, Screenshot, Line, Angle, angle, text, font, line, document, area, product, paper, angle, screenshot, number

嚴格來說, i7-8809G 可視為一顆 7-7920HQ 再搭配一張 Radeon RX VEGA M GH 的解決方案,也保有獨顯與內建顯示的切換功能,但以實質意義而言,由於將兩顆 DIE 配置在同一顆晶片基座上,使雙方的通道更短、更直接,同時亦可將散熱片的位置集中靠單一散熱點處理,不用像傳統 CPU 與 GPU 獨立設計至少需要兩處散熱接觸點。

Electronics Accessory, Electronics, Product, Font, Brand, electronics accessory, product, electronics accessory, hardware, technology, product, electronic device, brand, electronics, font

Electronics Accessory, electronics accessory, electronics accessory, electronics

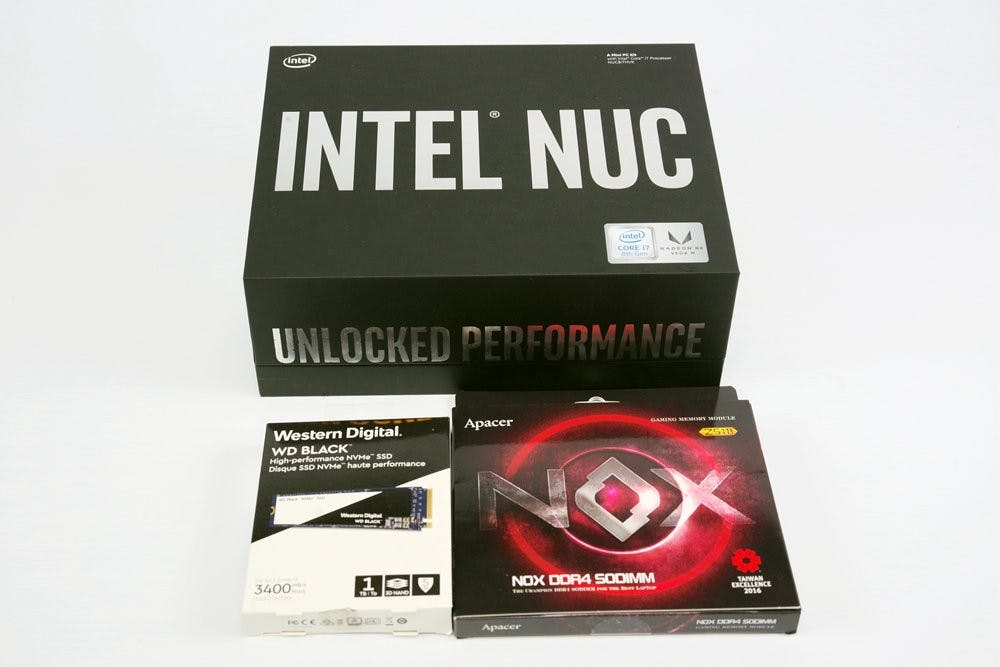

由於是屬於準系統套件, NUC8i7HVK 套件需要自行搭配記憶體與儲存,由於空間上的考量, NUC8i7HVK 搭配的是筆記型電腦用的 SO-DIMM 封裝 DDR4 RAM ,儲存則是透過 M.2 形式,而此次搭配的是宇瞻的電競級 NOX 暗黑女神 8GB x 2 DDR4 RAM ,以及 WD 的 1TB Black NVMe SSD 。

Electronics Accessory, Electronics, Font, electronics accessory, electronic device, electronics accessory, technology, hardware, electronics, product, font

Electronics Accessory, Product, Product design, Brand, Design, electronics accessory, product, electronic device, technology, product, brand, electronics accessory

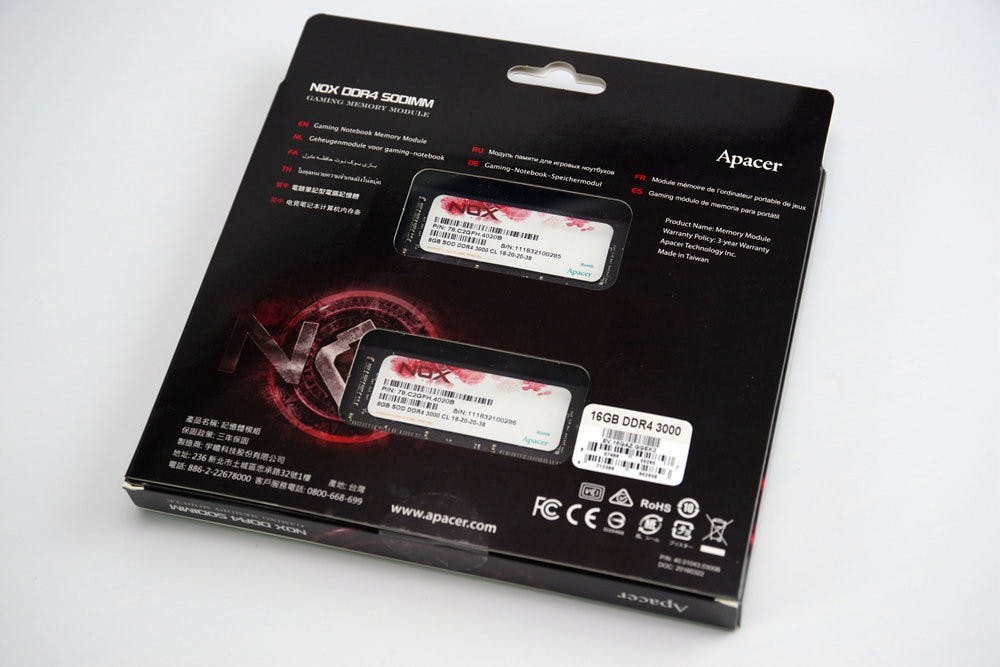

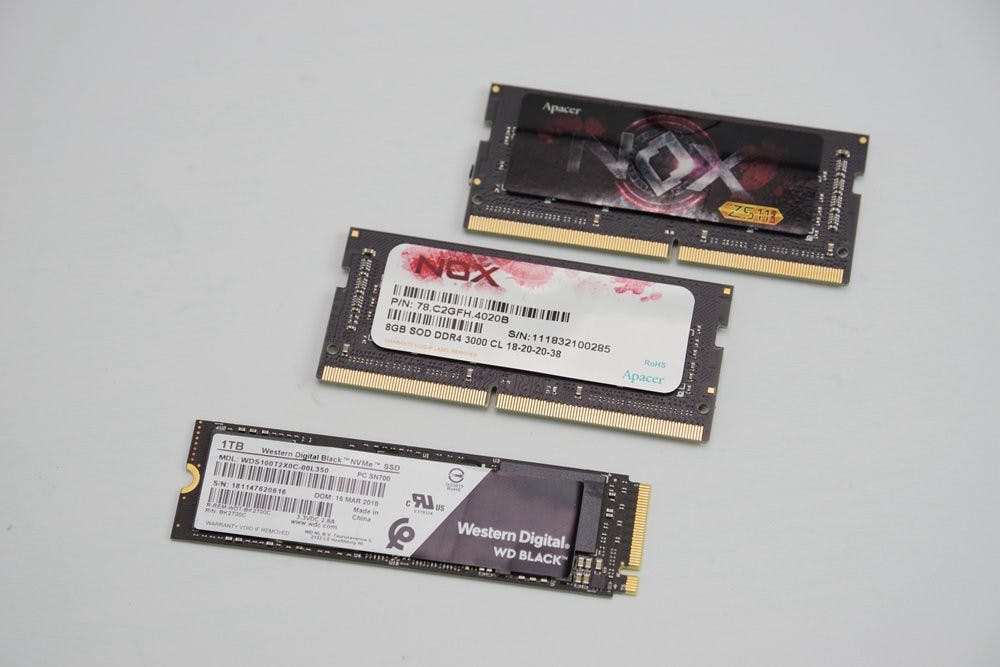

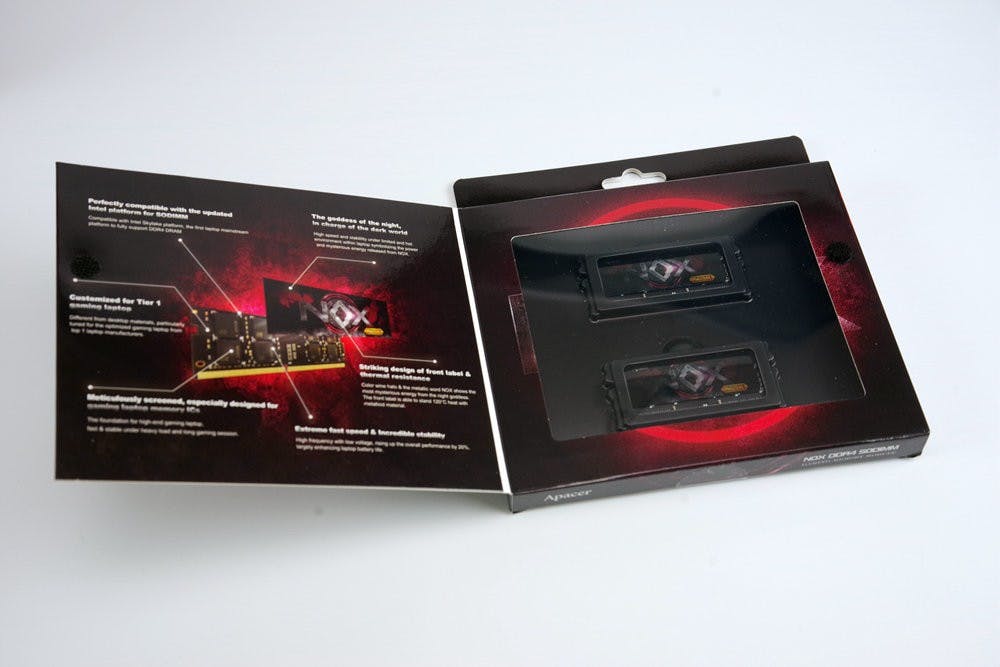

WD 的 Black NVMe SSD 先前已經介紹過,可具備 3,400MBps 的讀取與 2,800MBps 的寫入性能,至於 NOX 暗黑女神記憶體強調與 Intel 平台可完美相容,記憶體顆粒為特挑,並可支援 Intel XMP 2.0 ,此次使用的是兩條 8GB 的 DDR4 3000MHz , CL 為 18-20-20-38 ,考慮到長時間運作的穩定性,僅單純開啟 XMP2.0 使用。

Brand, Product design, Product, Design, , product, brand

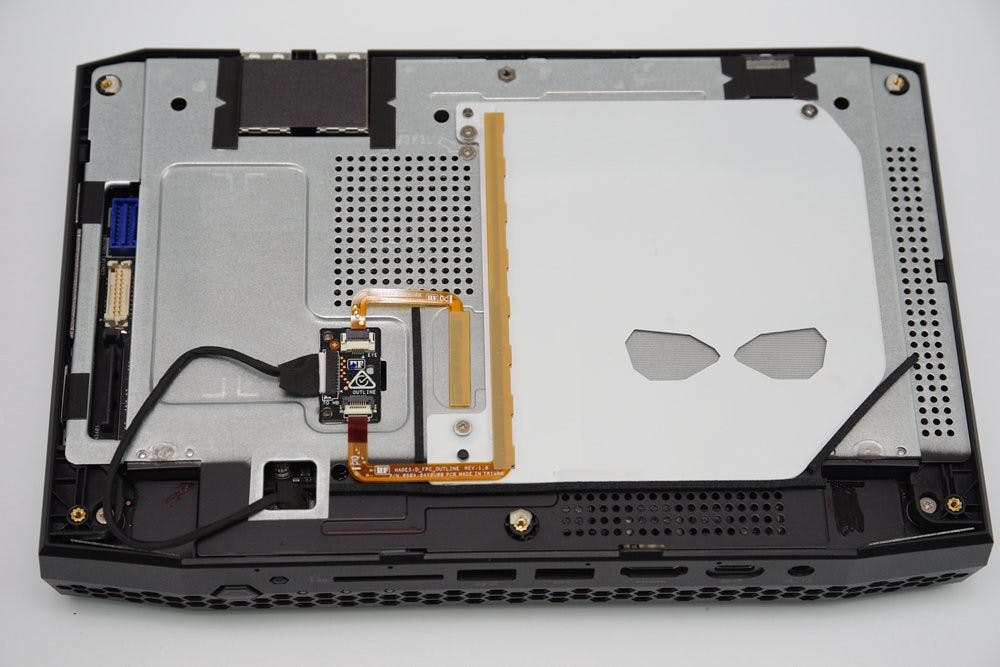

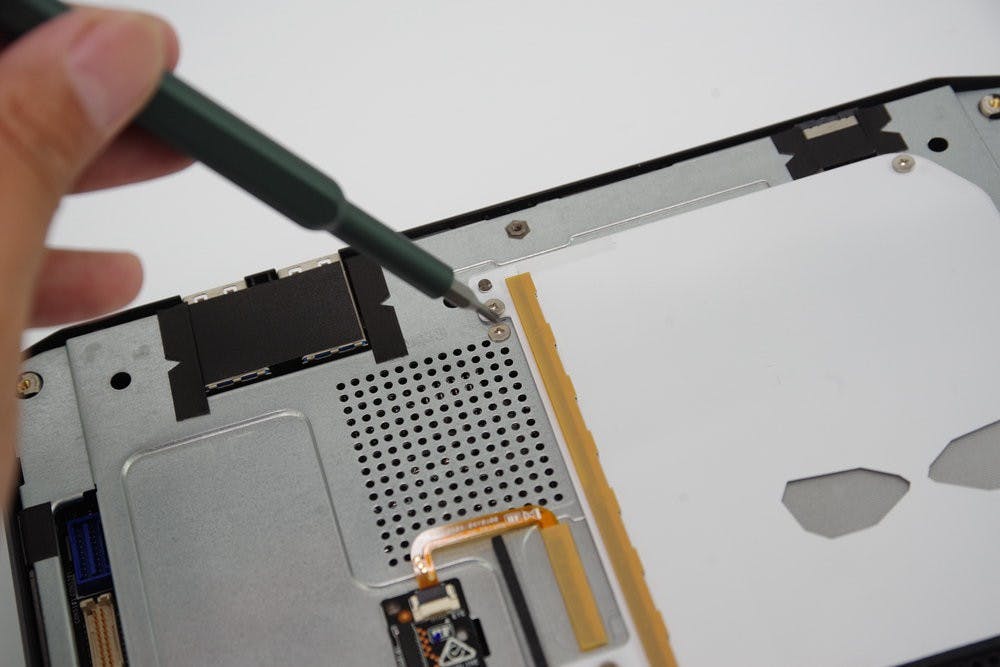

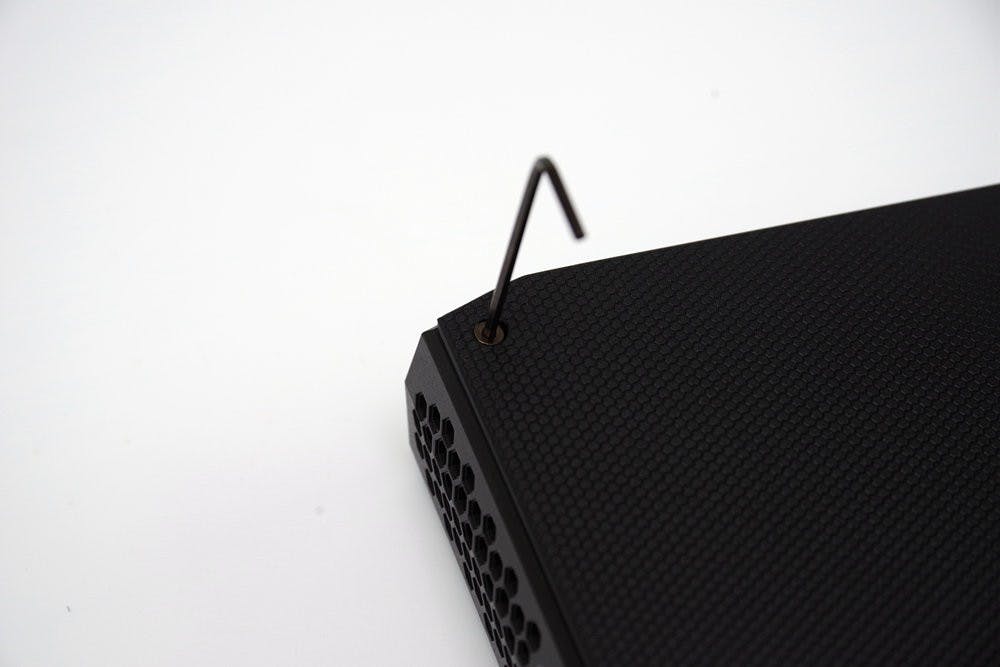

為了將 RAM 與 SSD 放入機身,首先還是照官方說明把上蓋的四根六角螺絲轉下,就可看到下方的導光片與金屬上蓋,要將導光片下 LED 的排線(黑色)移除後才能把整個金屬上蓋取下,進行內部組件的安裝。

Computer hardware, , ツクモ, Personal computer, Computer, Laptop, Hard Drives, Next Unit of Computing, , Homebuilt computer, computer hardware, technology, electronic device, computer hardware, electronics, computer component, product, personal computer hardware, laptop part, computer accessory, gadget

Electronics Accessory, Tactile Arithmetic and Algebra Frame, Product design, Arithmetic, Electronics, Algebra, Computer, Product, Design, Computer hardware, tactile arithmetic and algebra frame, grey, technology, electronic device, electronics, electronics accessory, computer component, product, gadget

Motherboard, Computer hardware, Electronics, Computer System Cooling Parts, Central processing unit, Electronics Accessory, Electrical network, Electronic engineering, Electronic component, Microcontroller, motherboard, computer component, technology, motherboard, electronic device, computer hardware, electronics, microcontroller, electronics accessory, electronic engineering, cpu

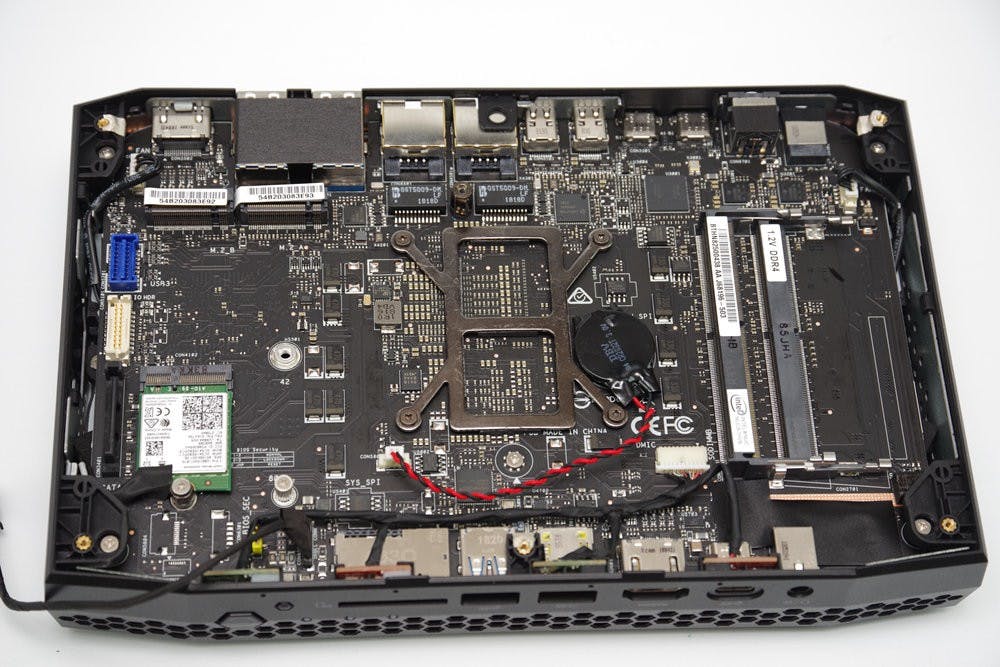

把金屬上蓋取下後,可看到基本格局,包括兩條可用的 M.2 插槽,兩條 SO-DIMM 記憶體插槽,並可看到散熱器背面的強化底板,另外右側雖可看到整合電源的 SATA 插槽,不過 NUC8i7HVK 內部並未有可裝配 2.5 吋硬碟的空間,除非將上蓋進行破壞性改裝(就是在塑膠殼挖一個孔)並把硬碟連接在外面,否則以原本的設計是無用武之地的。

Metal, Electronics, Product design, Font, Product, Design, metal, technology, product, metal, font, electronics

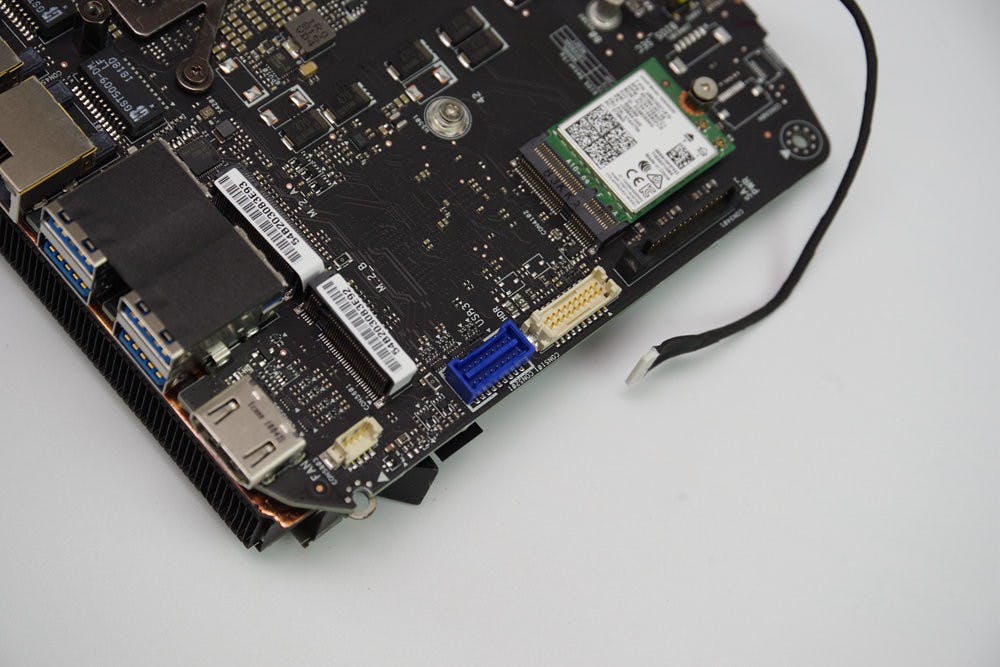

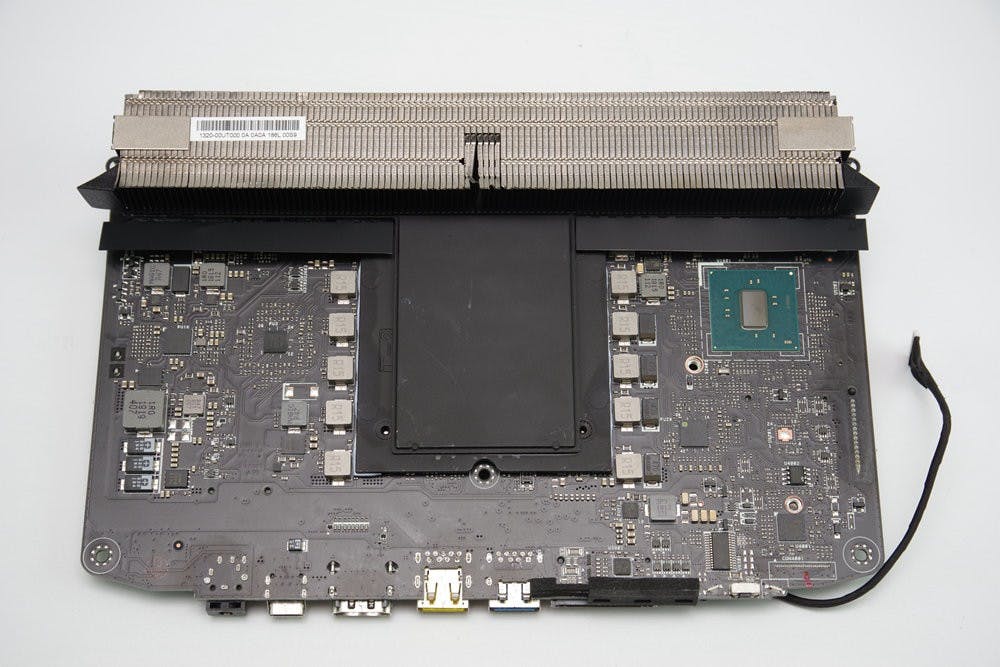

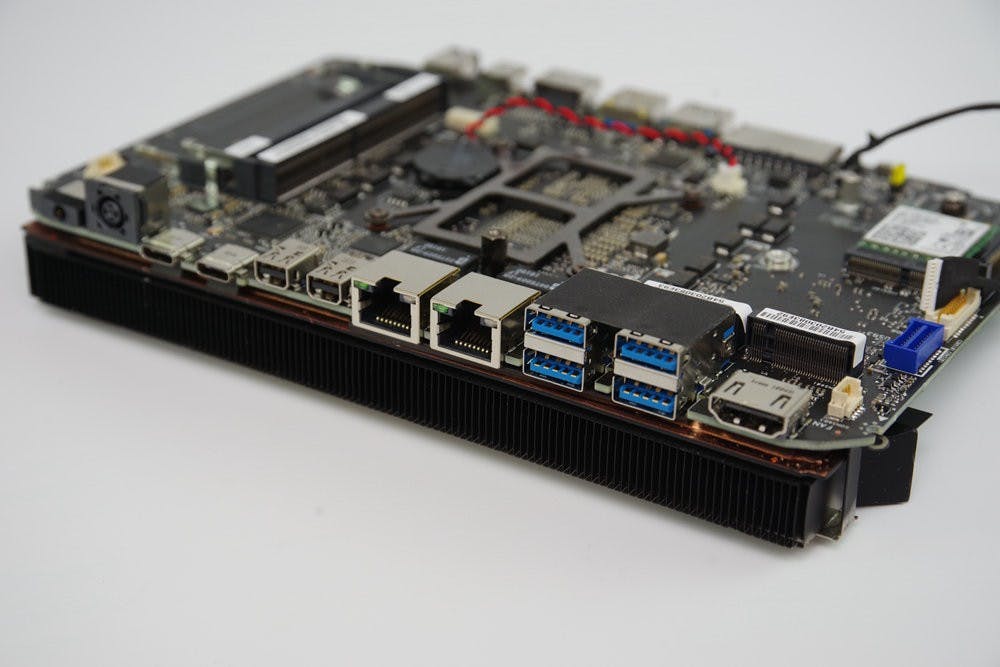

既然都開了上蓋,筆者索性就設法持續拆下去,但要注意的是 NUC8i7HVK 的結構其實不太好拆, PCB 的固定除了螺絲以外,在幾個 I/O 處也透過金屬機構固定,需要用手指或是工具將這些機構撐開,奉勸除了吃飽太閒不然還是不要繼續拆下去...,另外也由於機構較為複雜,筆者實在不太敢把散熱器拆開,故就未拍攝 i7-8809G 本體。

Central processing unit, Computer hardware, Electronics, Electronics Accessory, Circuit Prototyping, Electronic component, Microcontroller, Computer, Electronic circuit, Prototype, electronics, technology, electronic device, electronics, computer component, computer hardware, microcontroller, electronic component, product, circuit prototyping, cpu

Hard Drives, Graphics Cards & Video Adapters, Computer hardware, Motherboard, TV Tuner Cards & Adapters, Network Cards & Adapters, Computer, Microcontroller, Electronics Accessory, Central processing unit, computer hardware, computer component, electronic device, computer hardware, technology, network interface controller, electronics, electronics accessory, electronic engineering, personal computer hardware, io card

Hard Drives, Computer hardware, Electronics, Electronics Accessory, Central processing unit, Electronic component, Microcontroller, Electronic circuit, Electronic Musical Instruments, Computer, electronics, electronic device, technology, computer component, electronics, computer hardware, electronics accessory, personal computer hardware, data storage device, cpu, hard disk drive

TV Tuner Cards & Adapters, Graphics Cards & Video Adapters, Computer hardware, Motherboard, Network Cards & Adapters, Electronics, Computer, Sound Cards & Audio Adapters, Microcontroller, Electronics Accessory, network interface controller, computer component, electronic device, technology, network interface controller, motherboard, computer hardware, personal computer hardware, io card, electronic engineering, microcontroller

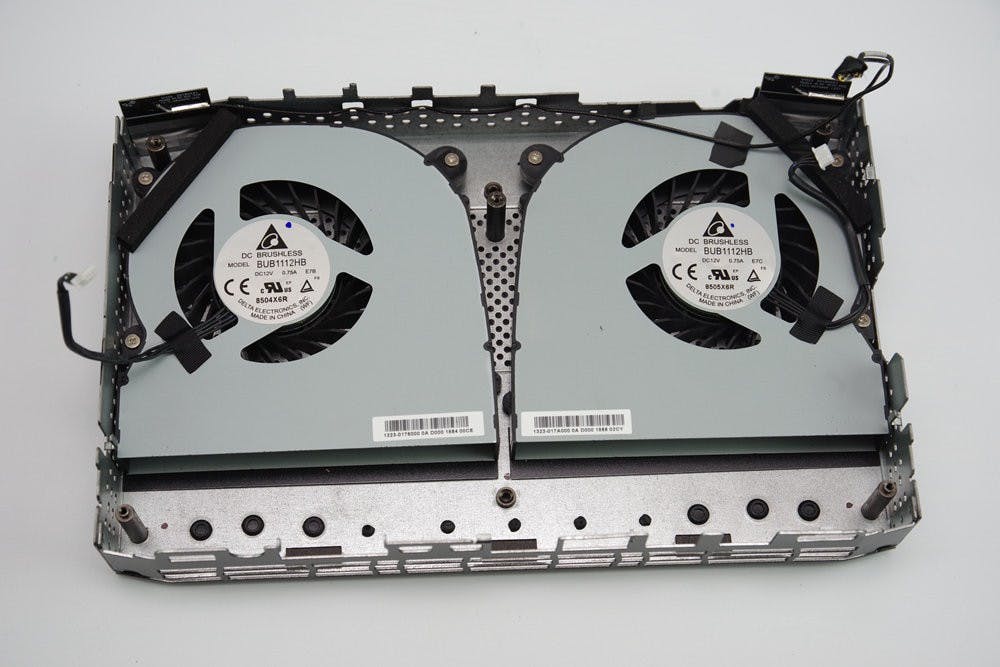

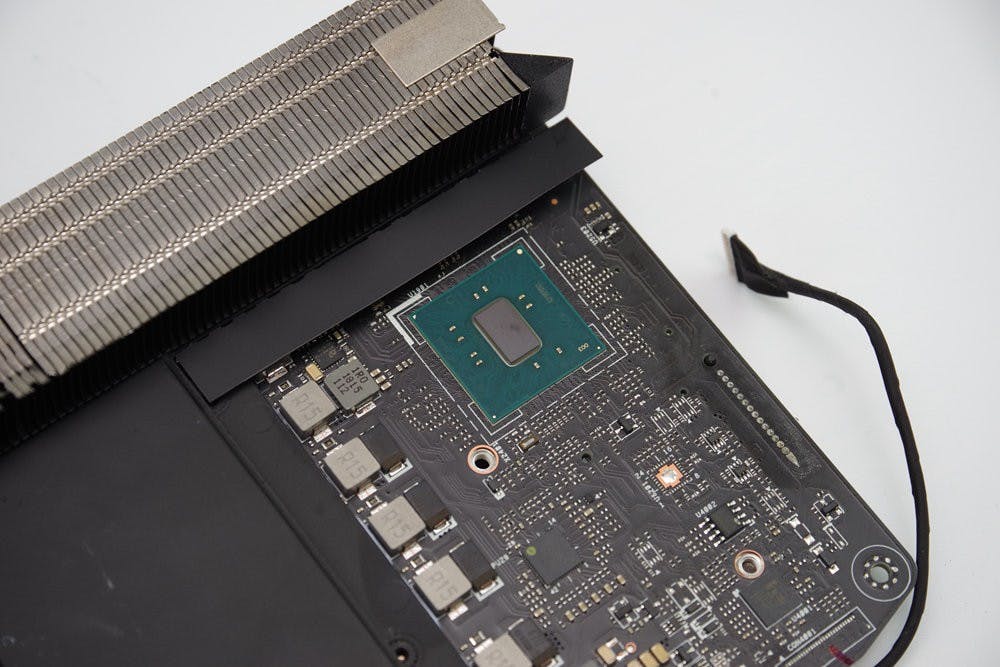

可看到作為主動散熱風扇的是兩個台達的風扇模組,風扇本身並未固定在散熱器上,而是安裝在底板上,而 i7-8809G 的散熱模組則是一個 T 字型的設計,透過均溫導熱版把熱度傳送到後端的金屬鰭片,鰭片本身也有些許厚度,另可看到南橋晶片並未覆蓋散熱片,不過這對近年南橋晶片的發熱量不高的情況是相當正常的。

Router, Electronics Accessory, Ethernet hub, Ethernet, Product design, Electronics, Product, Design, Multimedia, router, technology, electronic device, router, electronics accessory, multimedia, product, ethernet hub, electronics

Electronics Accessory, Electronics, Cable converter box, Electronic Musical Instruments, Product design, Multimedia, Product, Design, Cable television, Radio receiver, electronics, technology, electronics, electronics accessory, multimedia, product, electronic device, audio receiver, cable converter box, electronic instrument

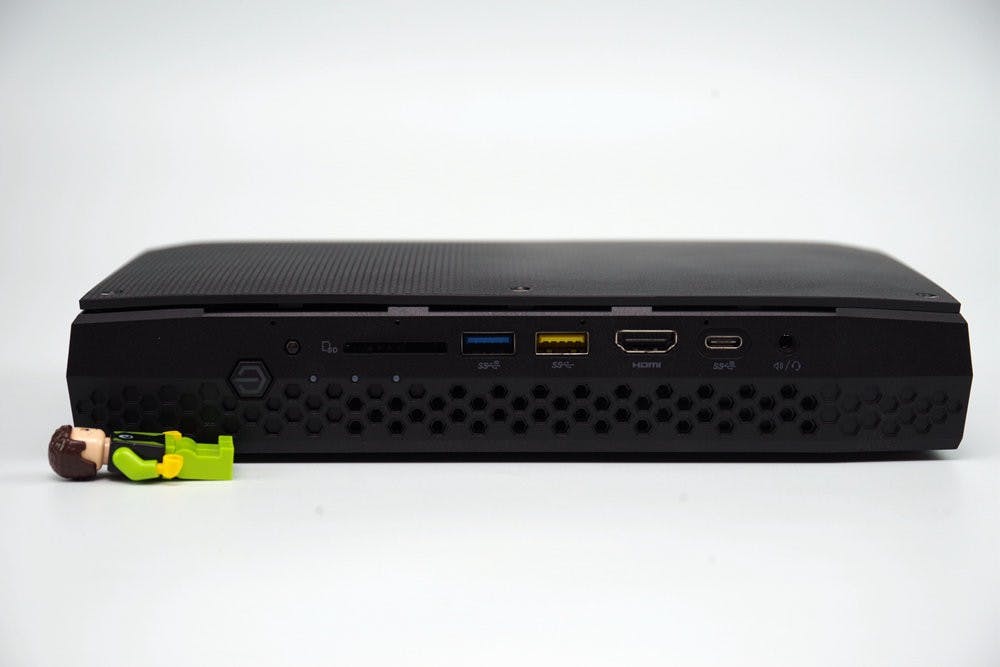

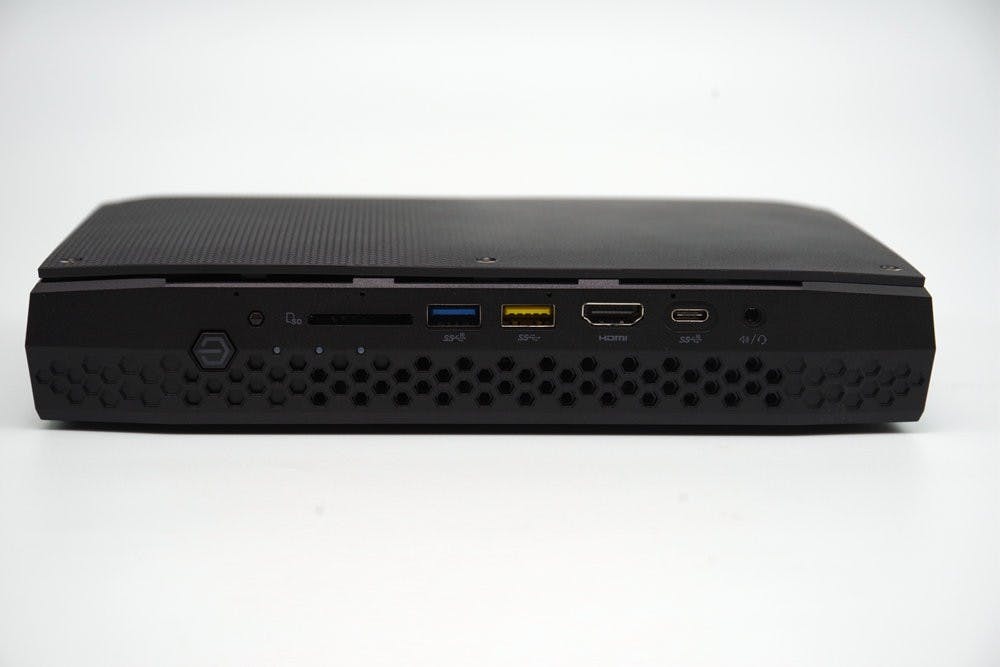

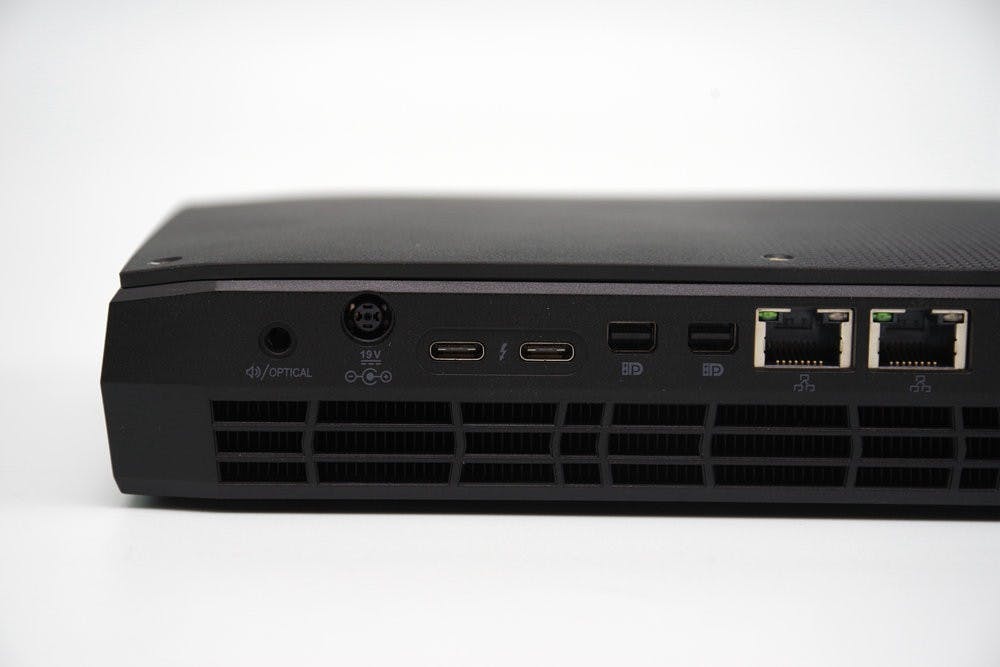

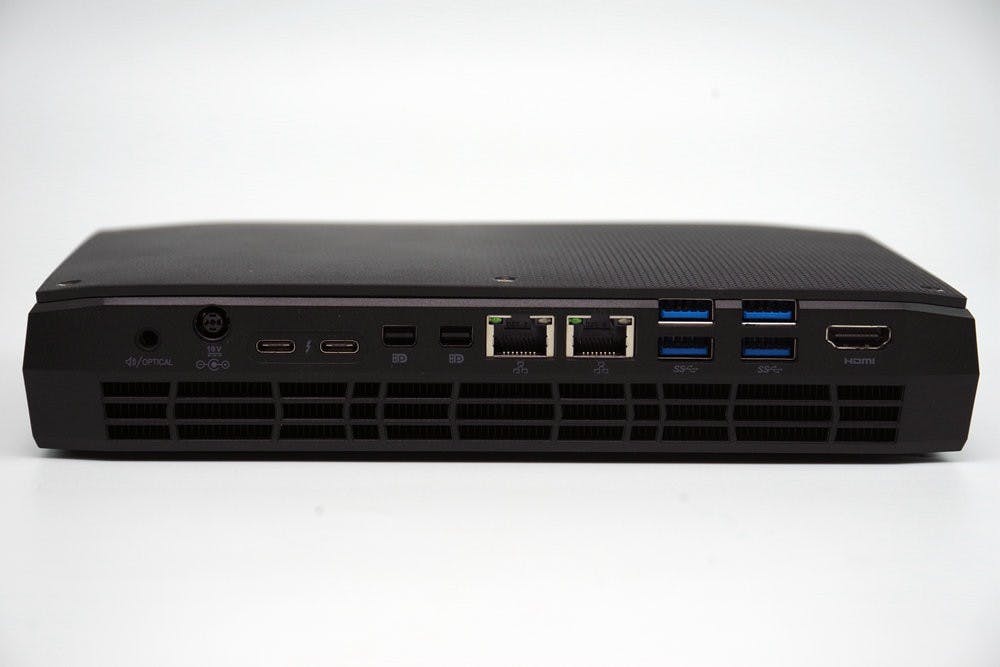

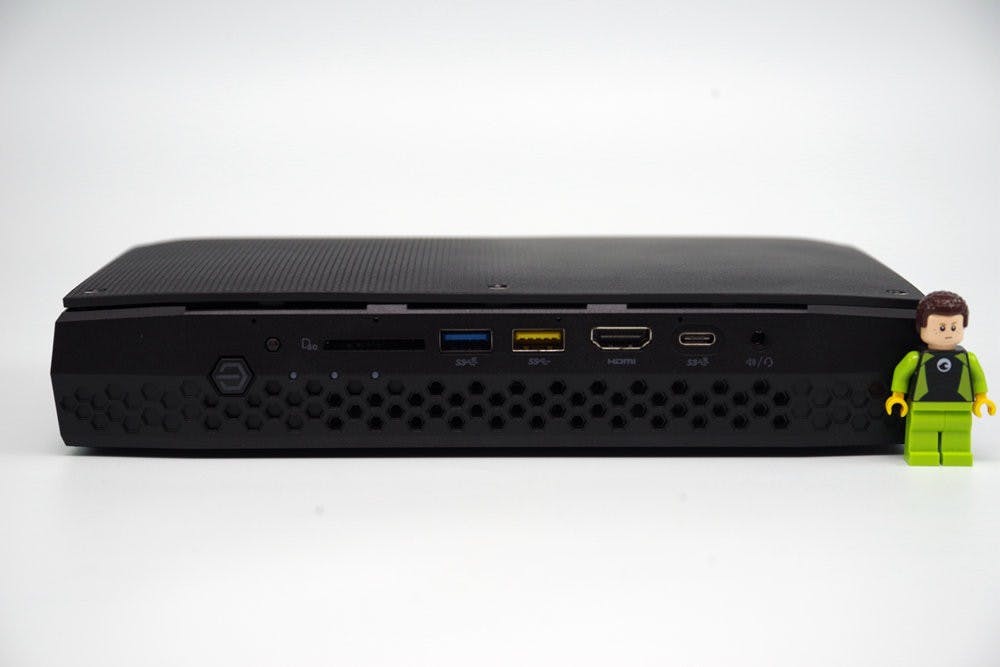

NUC8i7HVK 的 I/O 以一台微型系統可說相當豐富,甚至豐富過頭了,後方具備兩個 ThunderBolt 3 ,四個 USB 3.1 5Gbps,兩個乙太網路,一個 HDMI 2.0a 與兩個 miniDisplayPort 1.2,前方則包括紅外線遙控器(需在 UEFI 開啟功能), SDXC 槽,一個 USB 3.1 5Gbps ,一個 USB 3.1 10Gbps ,一個 HDMI 2.0a 與一個基於 Type-C 的 USB 3.1 ,另外前後的 3.5mm 端子可構成前後環繞聲道輸出以及具備光纖輸出。

Electronics Accessory, Product design, Product, Brand, Electronics, Design, hardware, product, technology, product, hardware, electronics, electronic device, brand, electronics accessory

Electronics Accessory, Cable converter box, Electronics, Multimedia, Cable television, Router, electronics, technology, electronic device, electronics, electronics accessory, multimedia, product, router, cable converter box

AC adapter, Adapter, Electronics, Laptop, Computer hardware, Alternating current, laptop power adapter, ac adapter, laptop power adapter, power supply, technology, computer component, electronic device, electronics accessory, adapter, hardware, product

要留意的是, NUC8i7HVK 的初版 UEFI 可正確的辨識如 Samsung 或是 Intel 的 NVMe SSD ,但像是筆者這次搭配的 WD Black NVMe SSD 則因不明原因在預載的 UEFI 無法被視為開機磁區,不過在 UEFI 層卻能被辨識,而這問題須只要 UEFI 升級到最新的版本就可解決。

3DMark, GeForce, Overclocking, Benchmark, Graphics processing unit, Graphics Cards & Video Adapters, AMD Vega, , Advanced Micro Devices, Central processing unit, 1080 ti time spy score, text, software, screenshot, web page, font, website, graphics

Graphics Cards & Video Adapters, 3DMark, GeForce, Benchmark, Nvidia GeForce RTX 2080 Ti Founders Edition 11GB GDDR6 PCI Express 3.0 Graphics Card, Nvidia RTX, , Nvidia, Intel Core i7, Central processing unit, timespy 2080ti, text, screenshot, software, website, font, graphics, web page

Graphics Cards & Video Adapters, GeForce, 3DMark, GeForce 10 series, NVIDIA GeForce GTX 1070, InnoVISION Multimedia Limited, , Advanced Micro Devices, NVIDIA GeForce GTX 1060, Radeon, gtx 1070 ti firestrike, text, screenshot, software, font, graphics

GeForce, 3DMark, NVIDIA GeForce GTX 1070, Graphics Cards & Video Adapters, Benchmark, Overclocking, Graphics processing unit, Radeon, GeForce 10 series, Workstation, 1070 max q firestrike, text, screenshot, software, graphics, font

Graphics Cards & Video Adapters, Laptop, GeForce, Ryzen, , Advanced Micro Devices, Graphics processing unit, Radeon, Central processing unit, , rx570 파스, screenshot, software, font, graphics

Dell, Laptop, Nvidia Quadro, Workstation, , Ryzen, Personal computer, Motherboard, Coffee Lake, Lenovo ThinkPad P52s 20LB 15.60, Laptop, text, software, font, screenshot, line, product, website, brand, media, Prima TV

Graphics Cards & Video Adapters, Ryzen, Republic of Gamers, Laptop, GeForce, Graphics processing unit, , ZOTAC, Motherboard, Advanced Micro Devices, web page, web page, text, screenshot, software, font, line, website

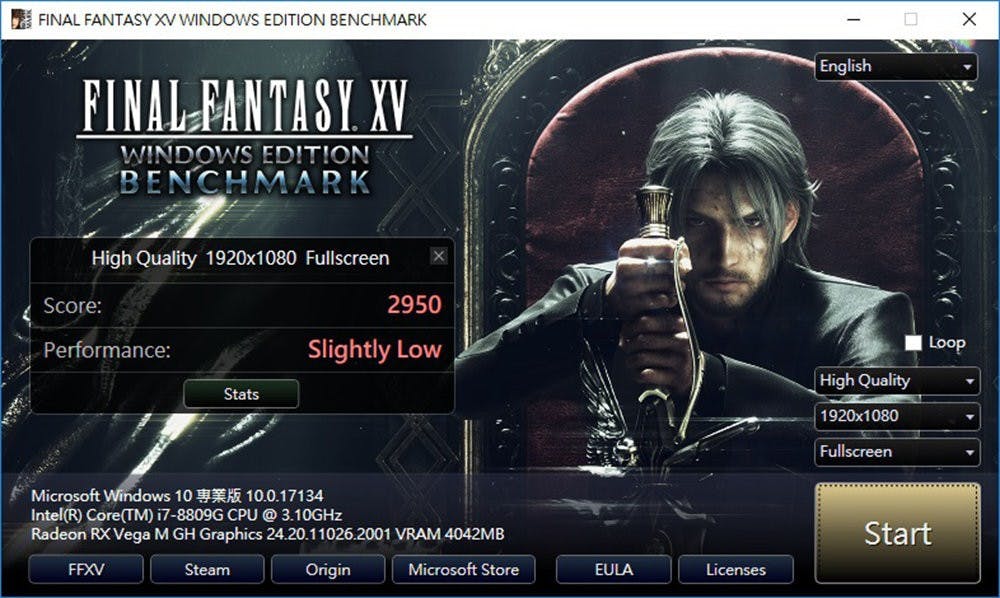

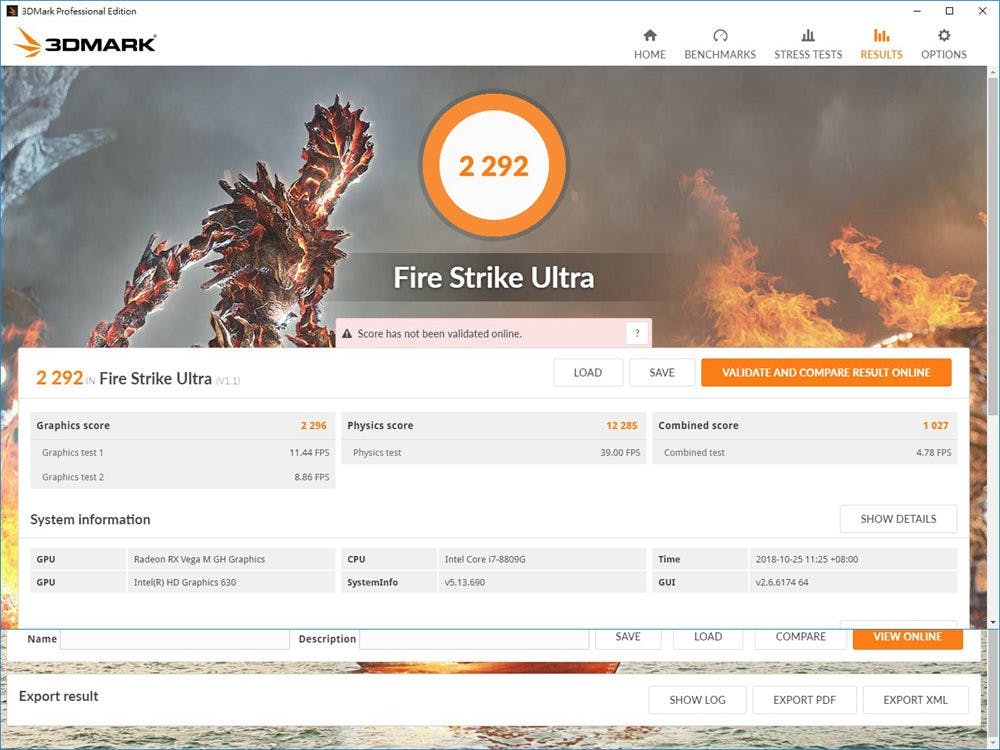

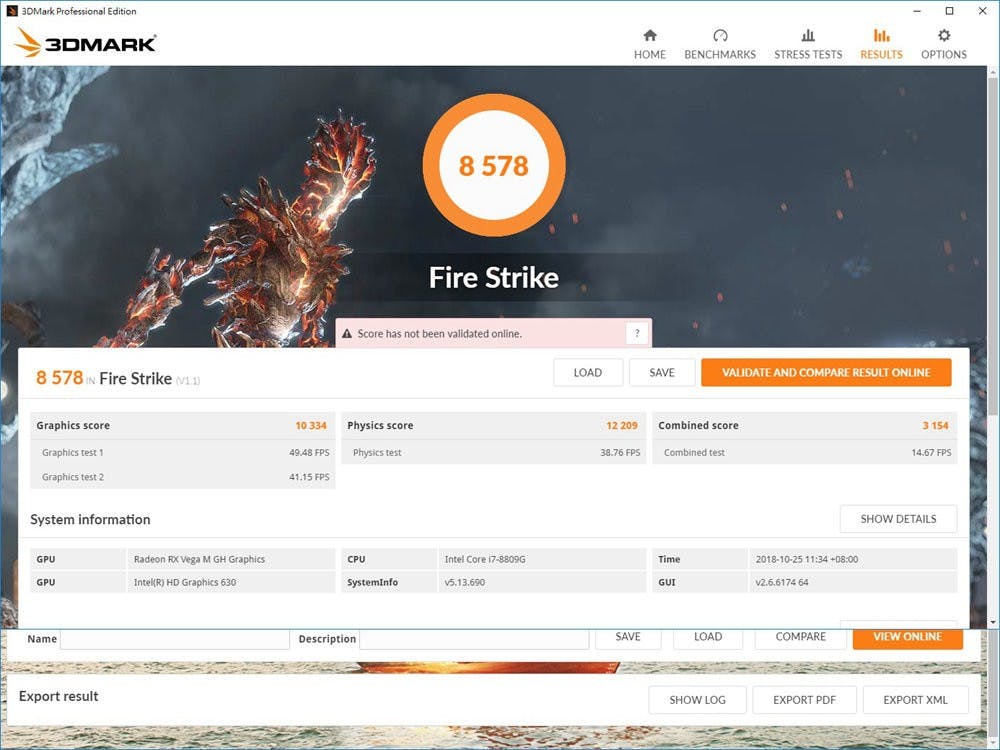

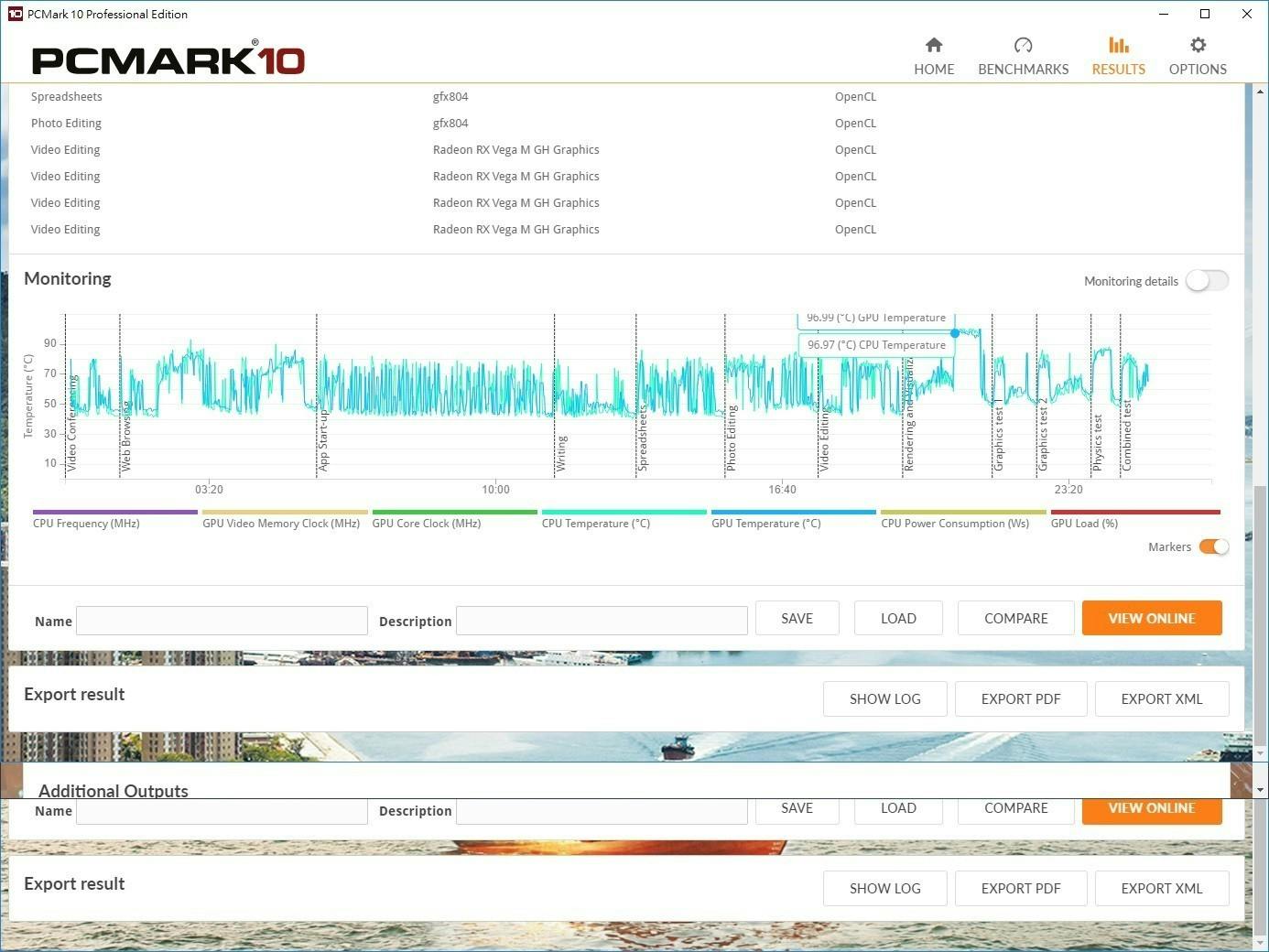

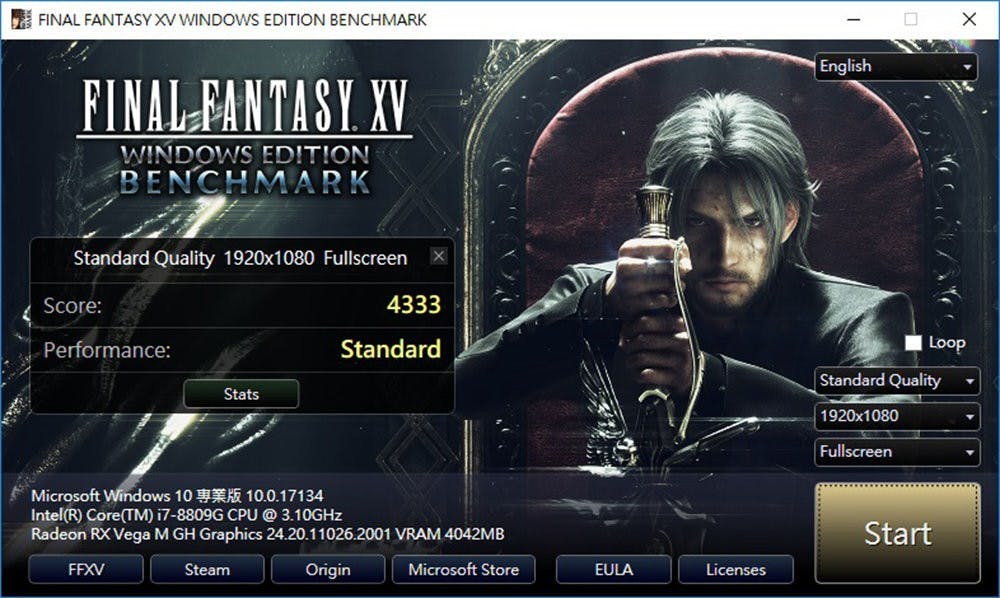

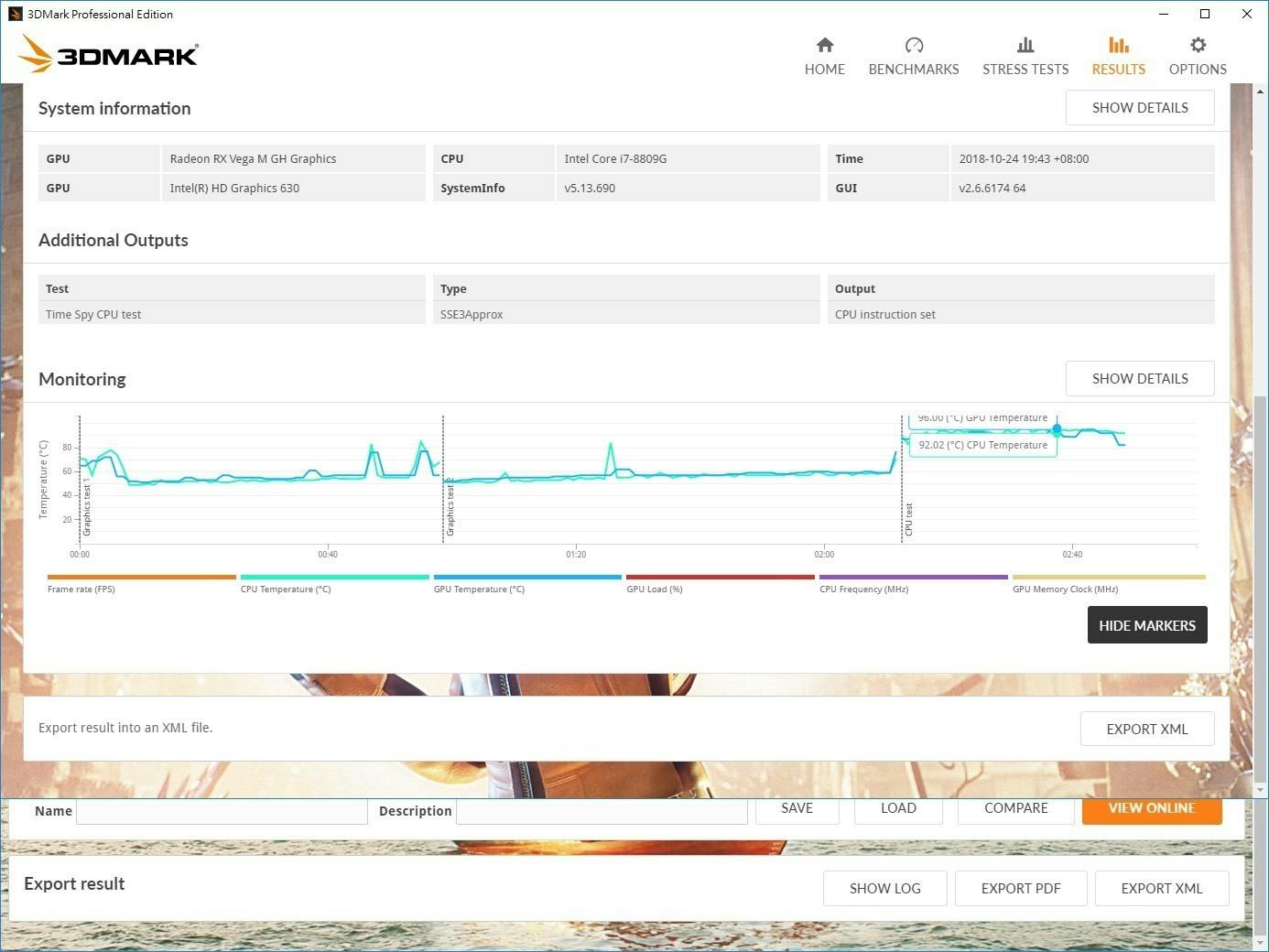

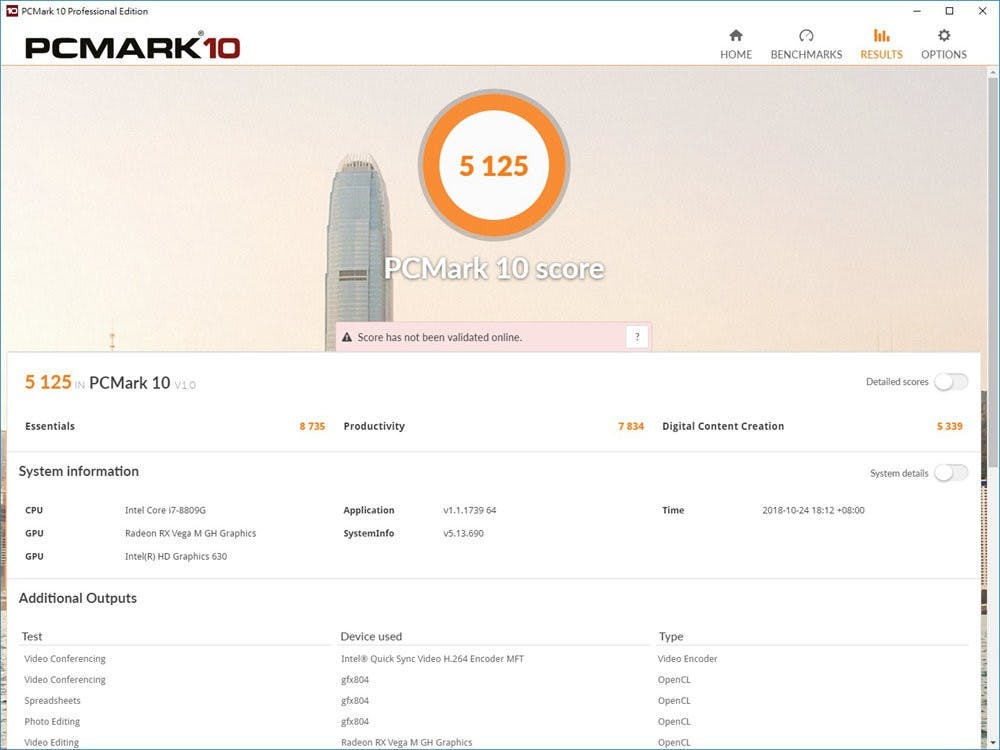

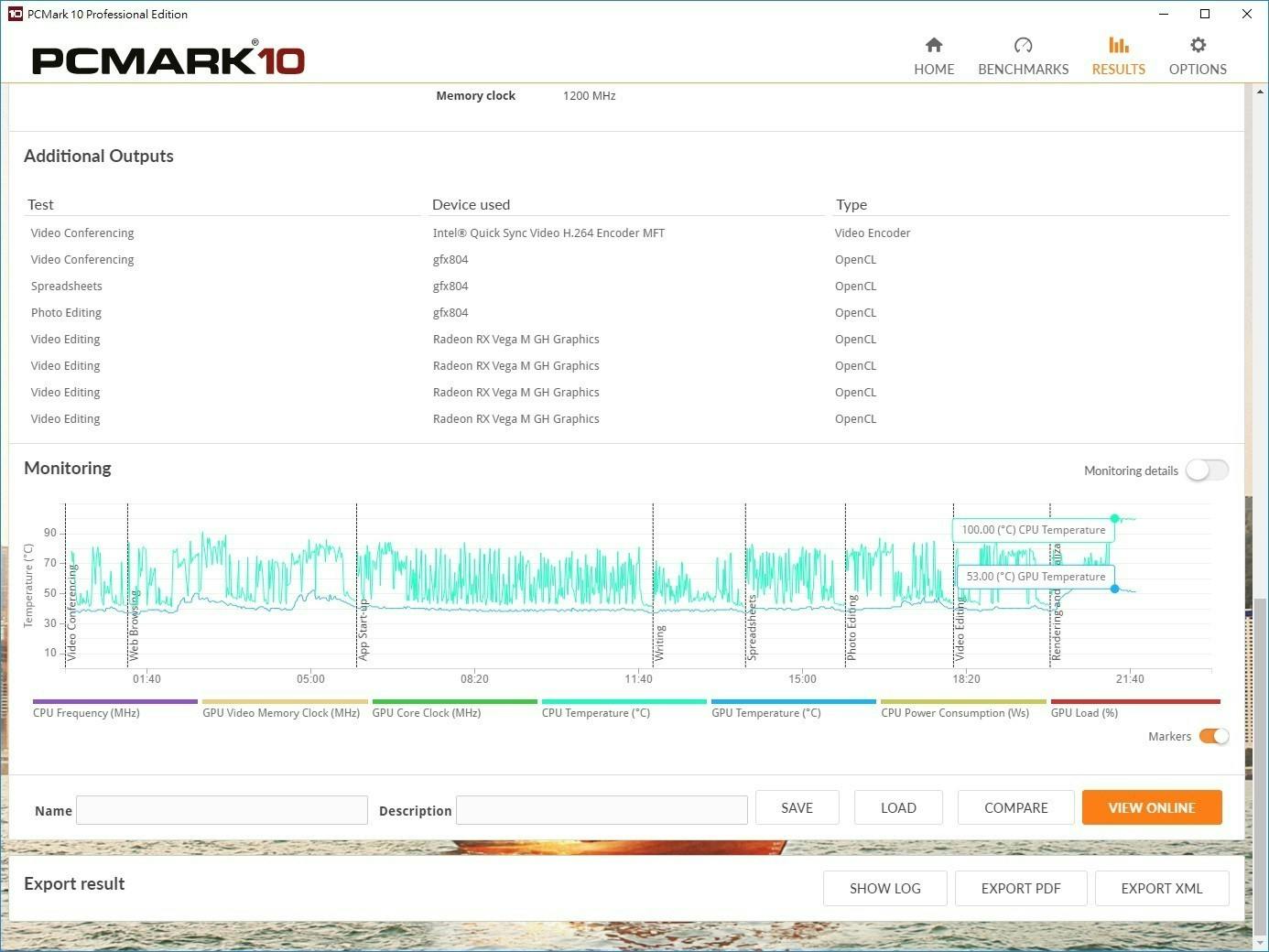

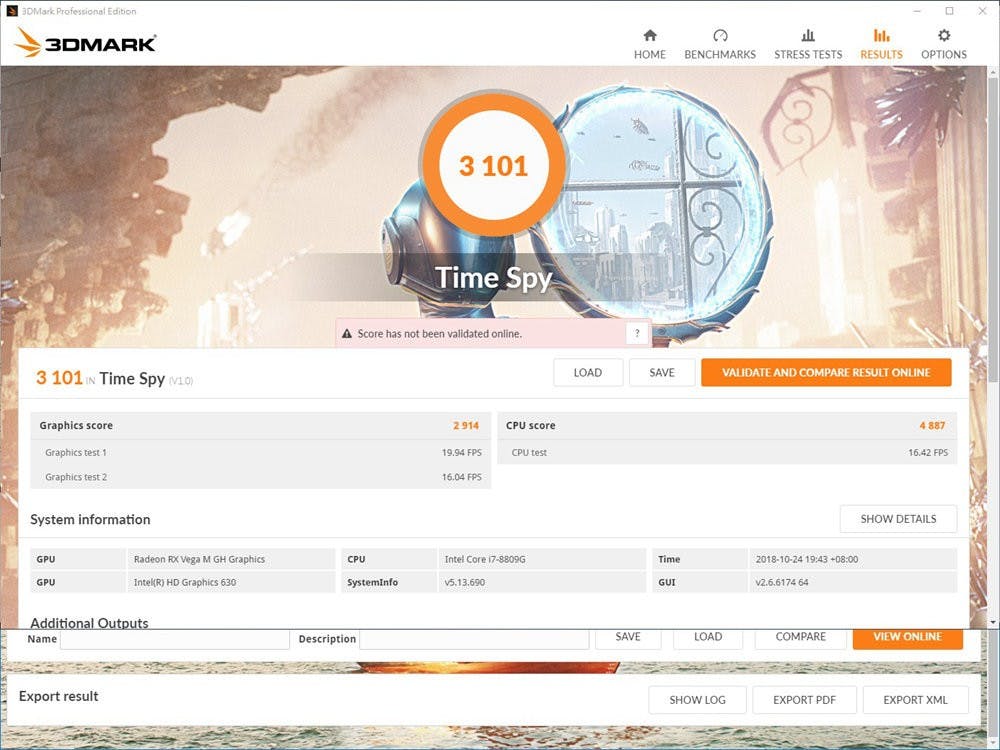

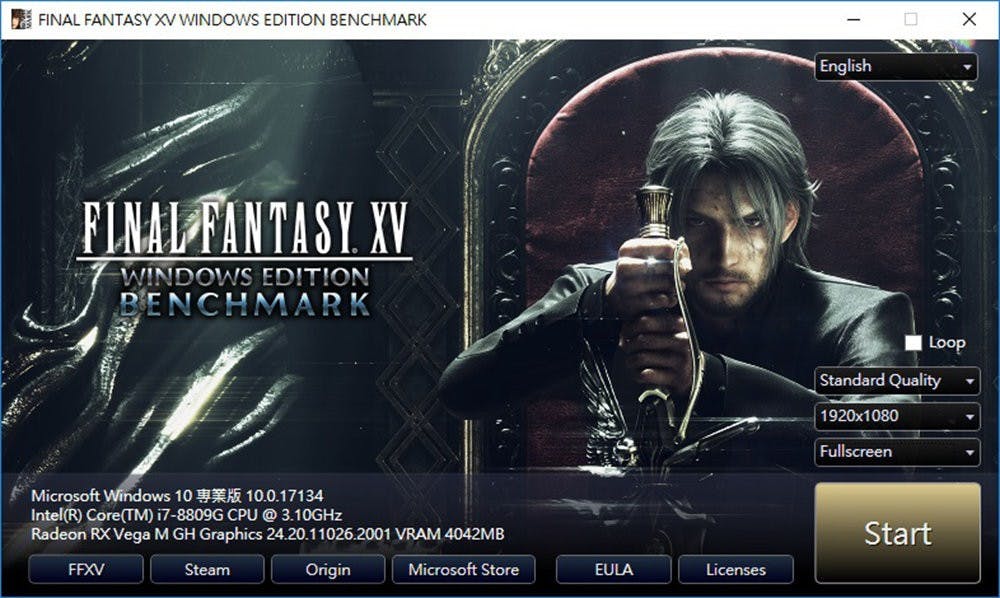

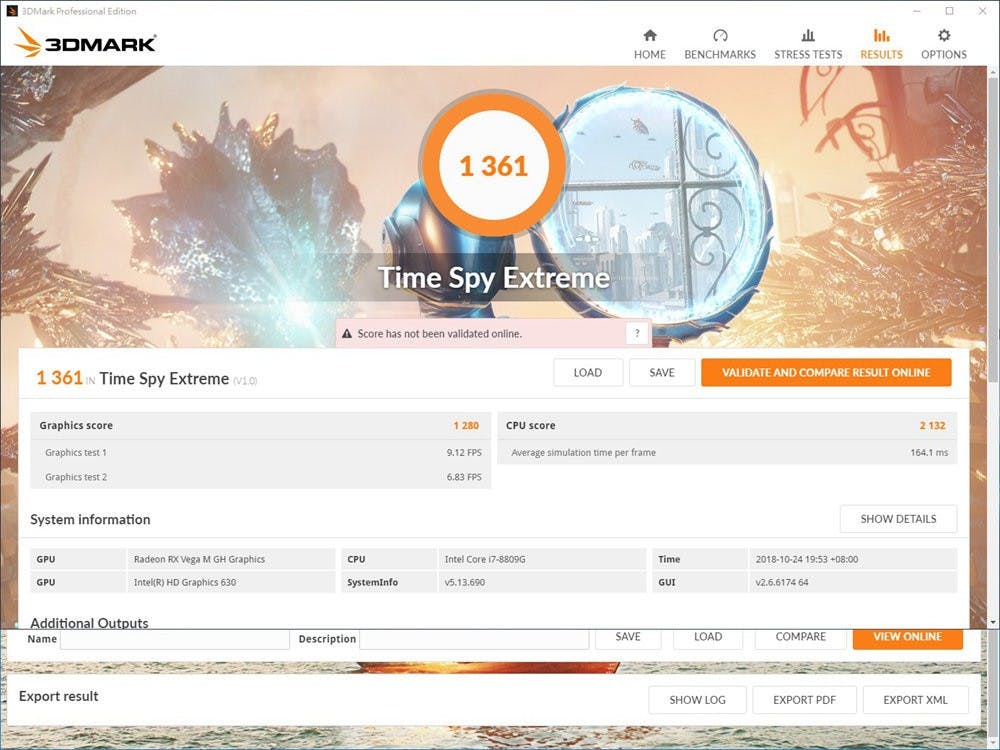

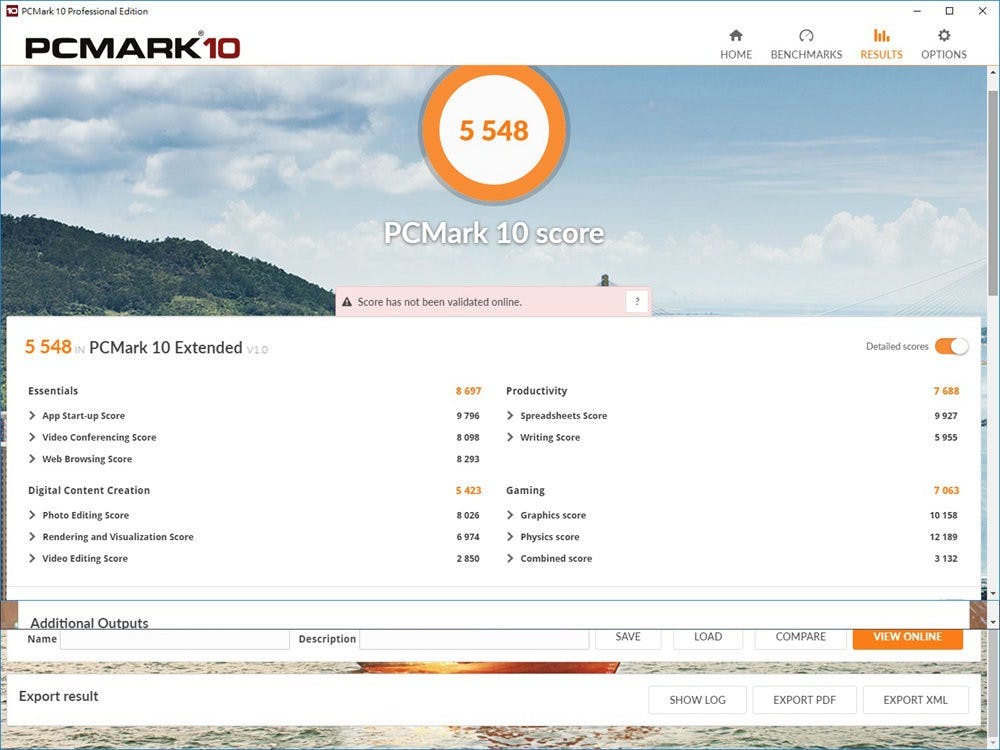

性能表現方面有些超出筆者的預期,若以 FullHD 的解析度輸出,在多數的遊戲開啟中等到高效能都已經有相當優秀的表現,這也拜 i7-8809G 的 CPU 本身的時脈就不低,畢竟在一般遊戲的資源分配, CPU 時脈也很容易影響到遊戲性能,而 Radeon VEGA M GH 的圖形效能也能夠達到遊戲級所需的性能。

Grand Theft Auto V, GTA 5 Online: Gunrunning, Grand Theft Auto IV, Video Games, Rockstar Games, , Game, Mod, GeForce, Loading screen, grand theft auto v, technology, games, screenshot, pc game, Grand Theft Auto V

Grand Theft Auto V, Graphics Cards & Video Adapters, Grand Theft Auto Online, GeForce, Frame rate, Graphics processing unit, EVGA Corporation, Xbox One, Video Games, Intel Core i7, gta 5 settings for gtx 1050, technology, screenshot, pc game, advertising, Grand Theft Auto V

Grand Theft Auto V, Grand Theft Auto IV, GTA 5 Online: Gunrunning, Video Games, Rockstar Games, , Game, Mod, Loading screen, GeForce, grand theft auto v, technology, screenshot, pc game, advertising, Grand Theft Auto V

Grand Theft Auto V, Acer Aspire Predator, Video Games, GeForce, Laptop, Gameplay, Game, , Intel Core i5, Personal computer, Grand Theft Auto V, neighbourhood, residential area, tree, house, building, home, real estate, suburb, roof, city

Graphics Cards & Video Adapters, Grand Theft Auto V, GeForce, Intel, Intel Core, , , Intel Core i7, Advanced Micro Devices, Overclocking, urban area, urban area, city, metropolitan area, metropolis, neighbourhood, building, skyline, residential area, downtown, tower block

Grand Theft Auto V, Graphics Cards & Video Adapters, Video Games, Gamer, , Benchmark, Micro-Star International, Laptop, , Computer hardware, 游民星空, city, sky, hill station, tree, mountain, escarpment, hill, land lot

, , Graphics Cards & Video Adapters, Computer, Gamer, , Micro-Star International, Game, Intel Core i7, LAN party, screenshot, screenshot, tree, roof, village, cable car

Night, Screenshot, Desktop Wallpaper, Computer, Biome, Darkness, Sky plc, sky, sky, night, atmosphere, darkness, screenshot, biome, midnight, computer wallpaper

Grand Theft Auto V, Intel, GeForce, Intel Core i5-6500, Intel Core i3, MSI GTX 970 GAMING 100ME, , Intel Core i7, ZOTAC, Intel Core, gtx 1060 i5 6500 gta v, amusement park, amusement ride, fair, tourist attraction, recreation, boardwalk, roller coaster, sky, water, fun

Suburb, Screenshot, Mountain, Tree, Phenomenon, Hill station, Sky plc, sky, sky, town, mountain, city, residential area, screenshot, village, suburb, hill station, mountain range

Grand Theft Auto V, Graphics Cards & Video Adapters, Video Games, Xbox One, , Benchmark, , PlayStation 4, Game, Frame rate, Grand Theft Auto V, river, mountain, rock, escarpment, watercourse, cliff, terrain, tourist attraction, water, sky

Screenshot, Geology, Desktop Wallpaper, Computer, Night, Mountain, Darkness, Phenomenon, Sky plc, screenshot, geological phenomenon, screenshot, atmosphere, darkness, sky, night, pc game, mountain, midnight, computer wallpaper

Graphics Cards & Video Adapters, , Alienware, Overclocking, GeForce 10 series, GeForce, Computer hardware, , Graphics processing unit, , Alienware, sky, ridge, terrain, mountain, road, aerial photography, coast, travel, mountain range, tourism

Controlled-access highway, Transport, Geology, Mountain pass, Tree, Hill station, Phenomenon, Highway, Sky plc, mountain pass, transport, road, mountain pass, mountain range, mountain, hill station, geological phenomenon, track, sky, valley

Intel, Graphics Cards & Video Adapters, Pentium, GeForce, Gaming computer, , Intel Core i5, Intel Pentium G4560, Central processing unit, Intel Core i7, Intel Pentium G4560, metropolitan area, city, urban area, metropolis, skyline, cityscape, daytime, skyscraper, sky, tower block

Traffic light, Compact car, Traffic, Pedestrian, , Minecraft, Car, , Vehicle, , lane, car, lane, road, transport, vehicle, asphalt, mode of transport, urban area, street, town

GeForce, , , , Nvidia Share, , , Video Games, Fraps, Graphics processing unit, track, track, transport, mode of transport, vehicle, rail transport, metropolitan area, residential area, car, public transport, train

Grand Theft Auto V, Graphics Cards & Video Adapters, GeForce, Video Games, Frame rate, , Game, First-person shooter, 1080p, ZOTAC, gta v high quality, transport, urban area, city, metropolitan area, downtown, neighbourhood, vehicle, building, metropolis, tree

Final Fantasy XV, Noctis Lucis Caelum, FINAL FANTASY XV WINDOWS EDITION, Video Games, Luminous Studio, Square Enix Co., Ltd., , Nintendo Switch, Pre-order, Chocobo, final fantasy xv windows edition pre order bonus, film, pc game, poster, action film, technology, advertising, computer wallpaper, darkness, Final Fantasy 7

Final Fantasy XV, Final Fantasy VIII, Final Fantasy XIII-2, , Square Enix Co., Ltd., , Game, Benchmark, Video Games, Role-playing video game, final fantasy, technology, pc game, film, advertising, screenshot, action film, games, computer wallpaper, Final Fantasy 7

Final Fantasy XV, Final Fantasy VIII, Final Fantasy XIII-2, Video Games, , Game, , Square Enix Co., Ltd., Benchmark, Role-playing video game, final fantasy, technology, pc game, film, games, action film, advertising, screenshot, video game software, computer wallpaper, Final Fantasy 7

Web page, Angle, Line, Screenshot, Font, World Wide Web, web page, text, font, web page, software, screenshot, line, area, document, product, media

Screenshot, Angle, Line, Web page, Computer, Computer program, Font, World Wide Web, screenshot, text, software, font, screenshot, line, web page, area, product, document, material

Screenshot, Angle, Line, , Bravo, Web page, Font, Supermarket, World Wide Web, bravo supermarket, text, software, font, line, screenshot, product, document, area, paper, material, 3DMark

Screenshot, Web page, Angle, Line, Bravo, , Font, Supermarket, World Wide Web, bravo supermarket, text, software, font, screenshot, line, web page, area, document, product, media, 3DMark

Screenshot, Line, Point, Angle, Web page, Computer, Computer program, Font, World Wide Web, screenshot, text, software, font, line, screenshot, web page, product, area, document, material

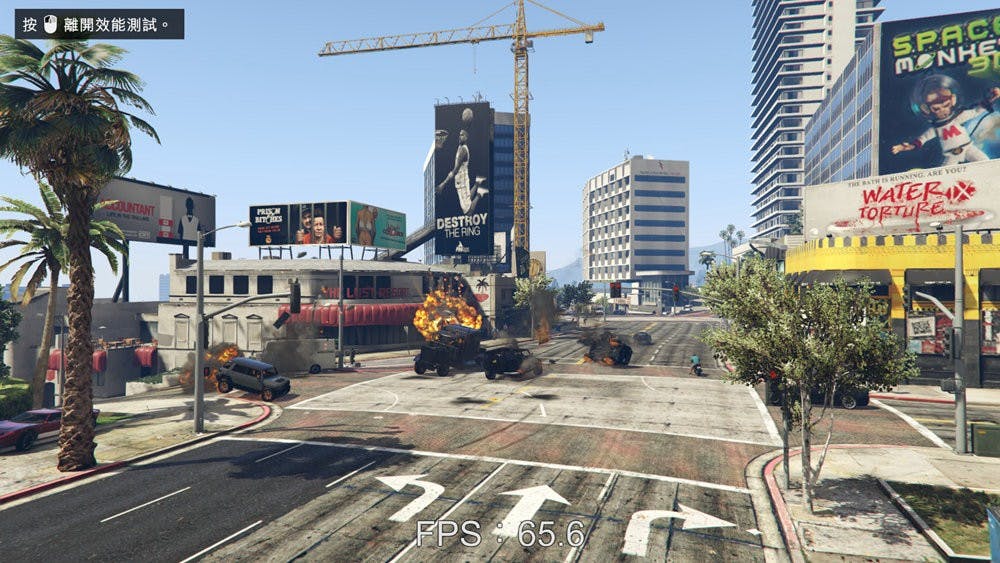

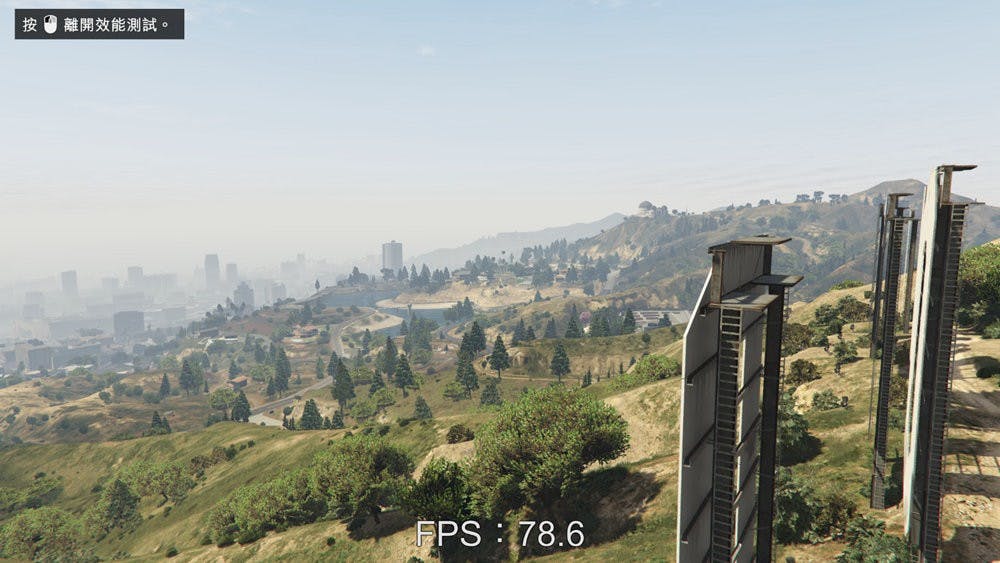

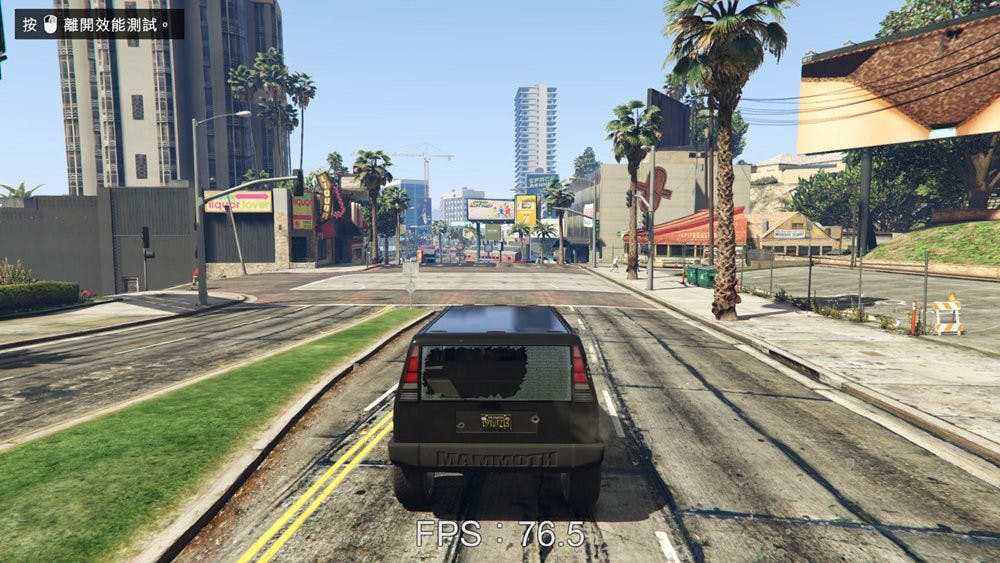

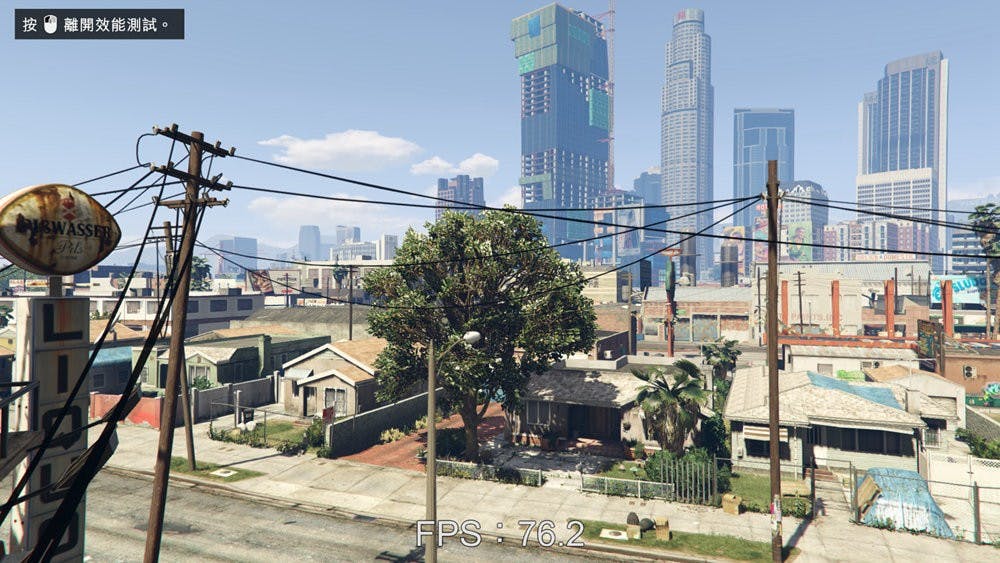

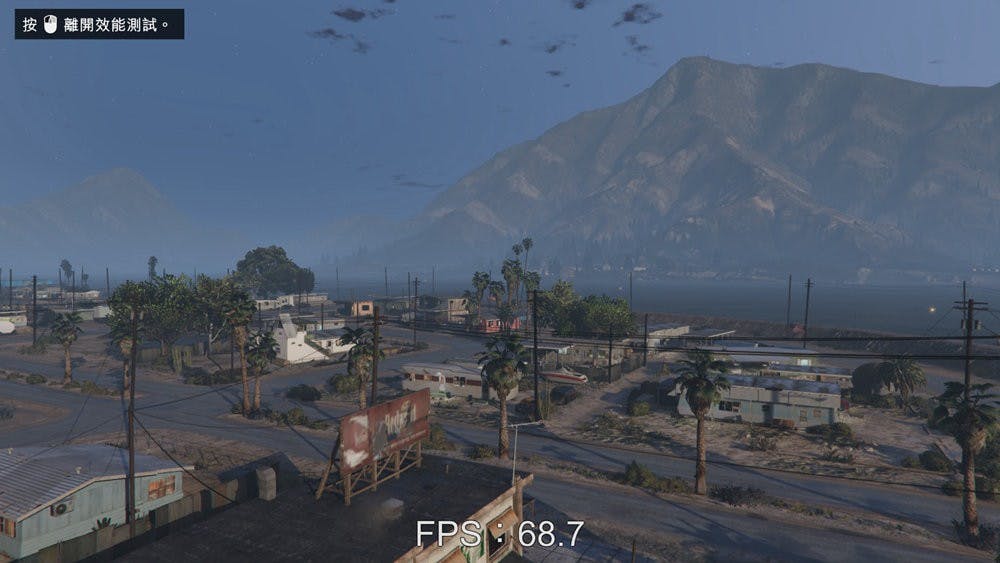

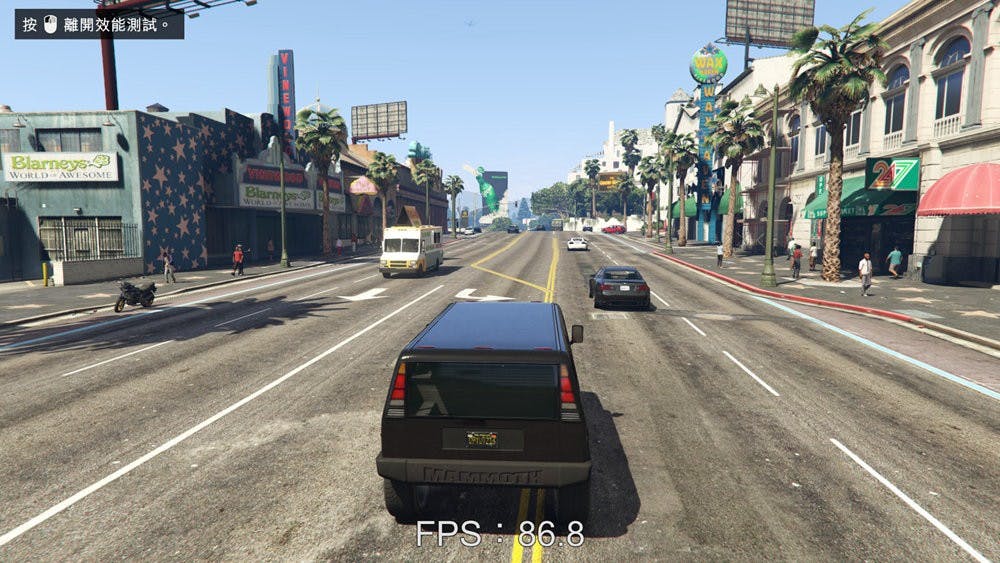

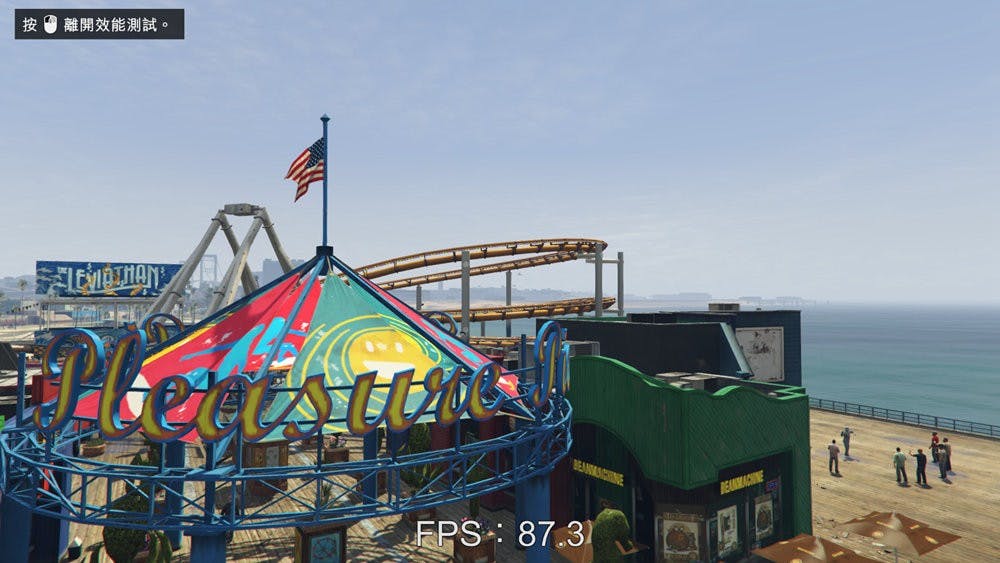

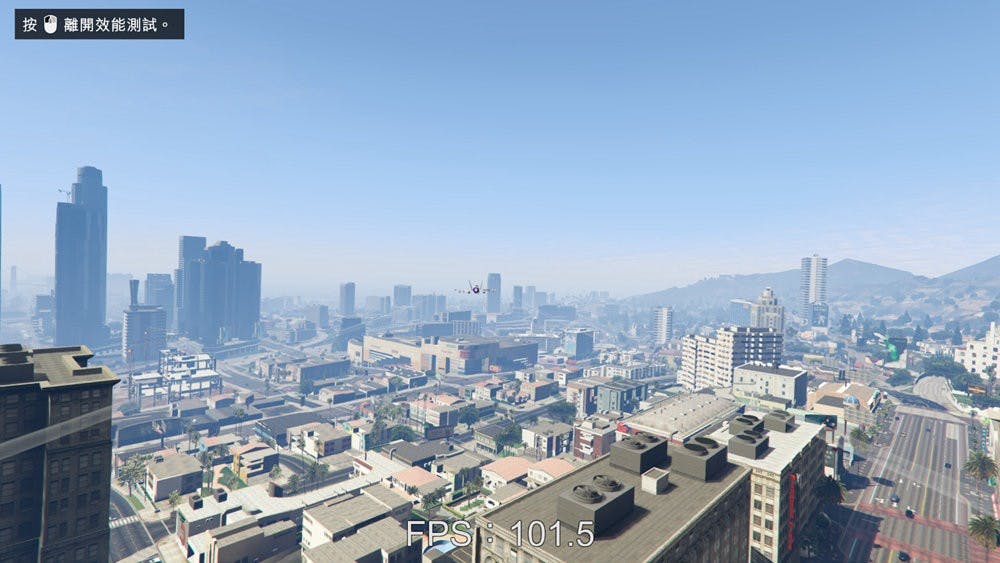

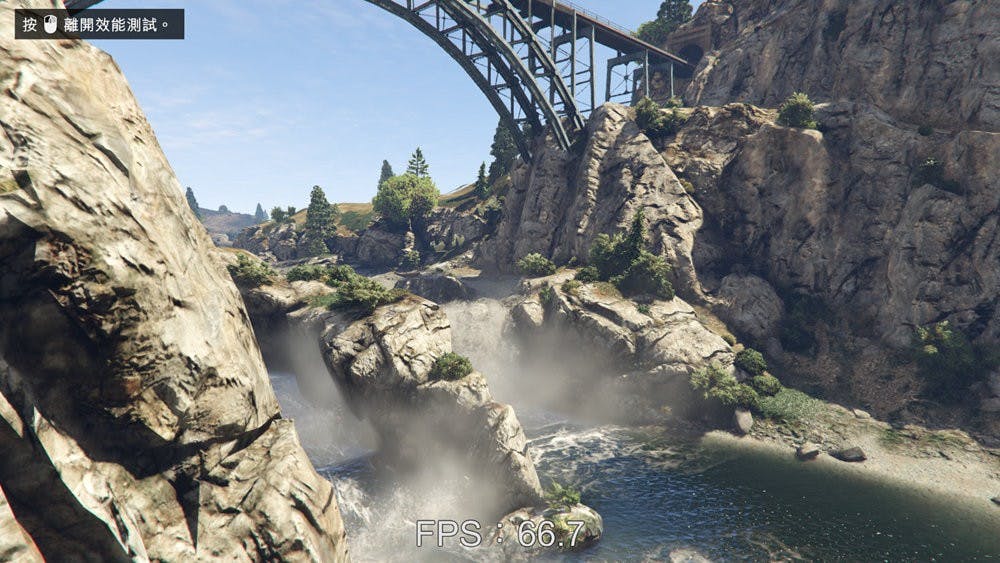

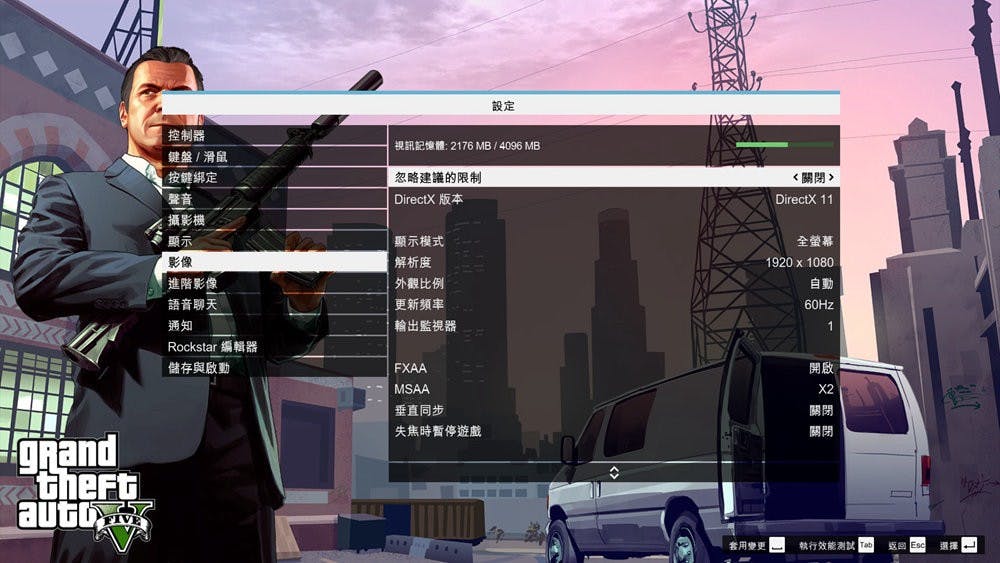

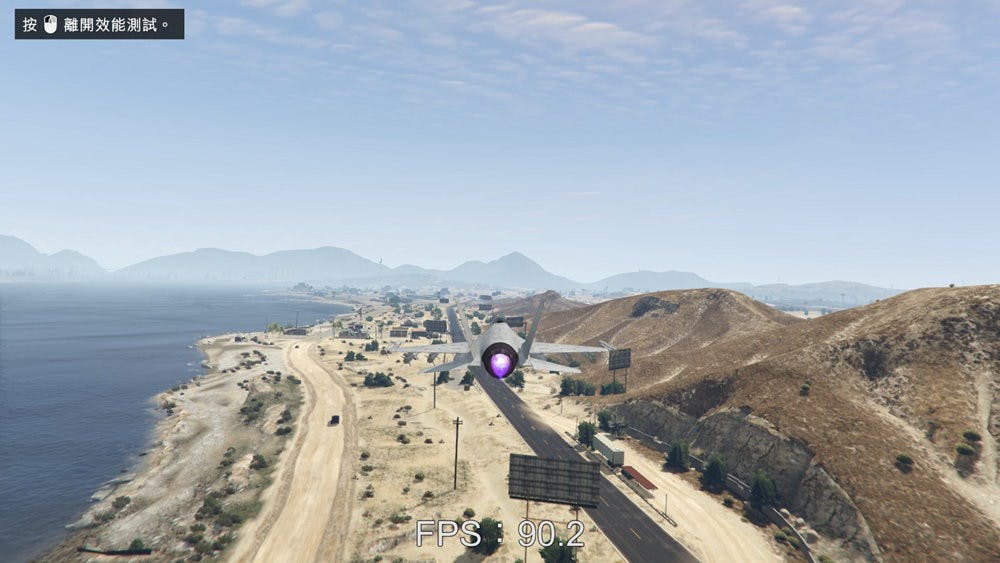

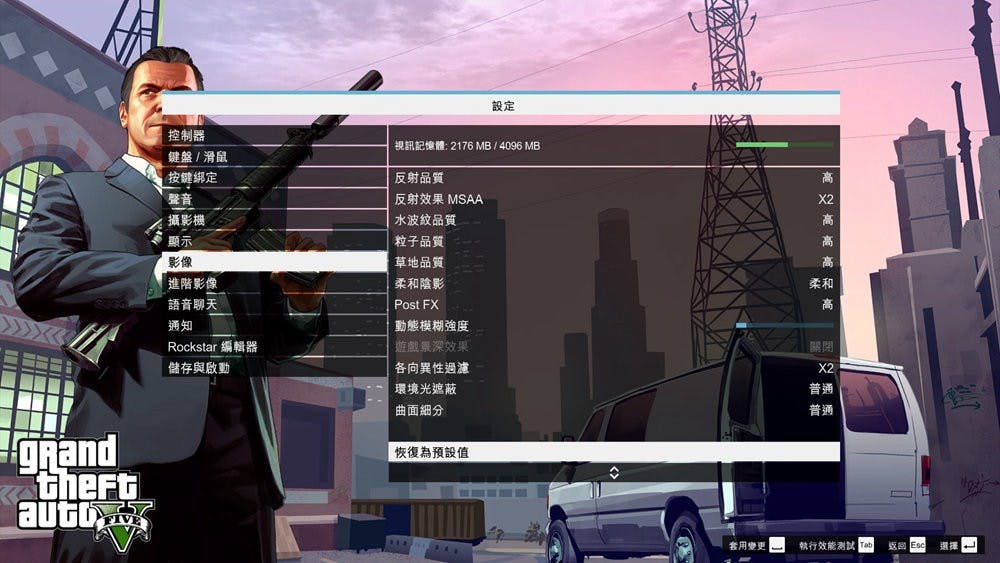

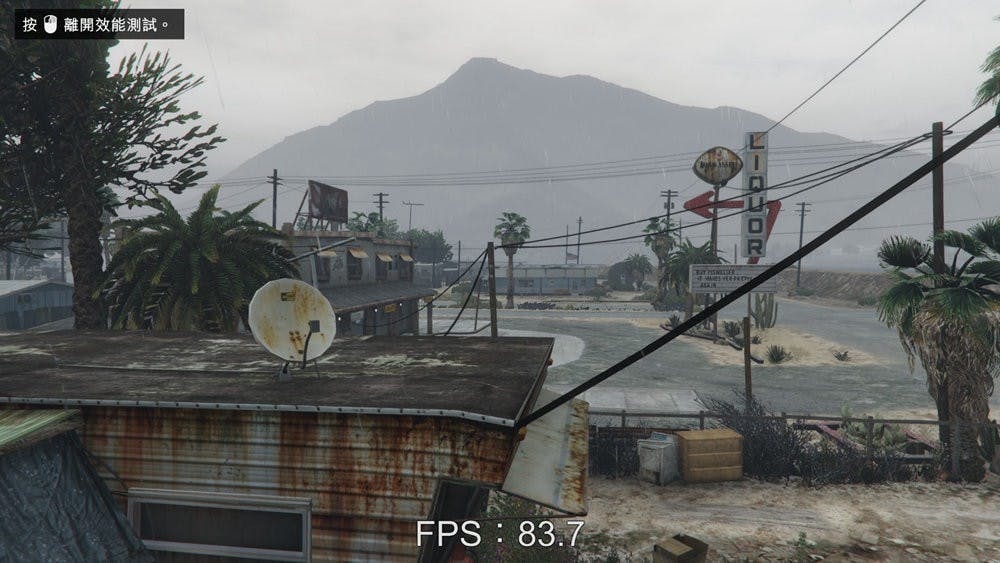

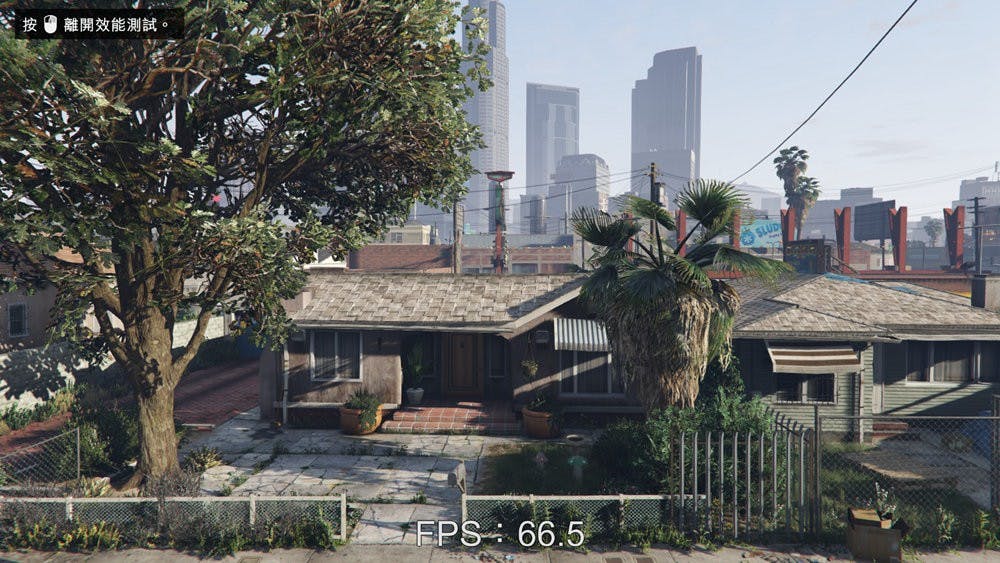

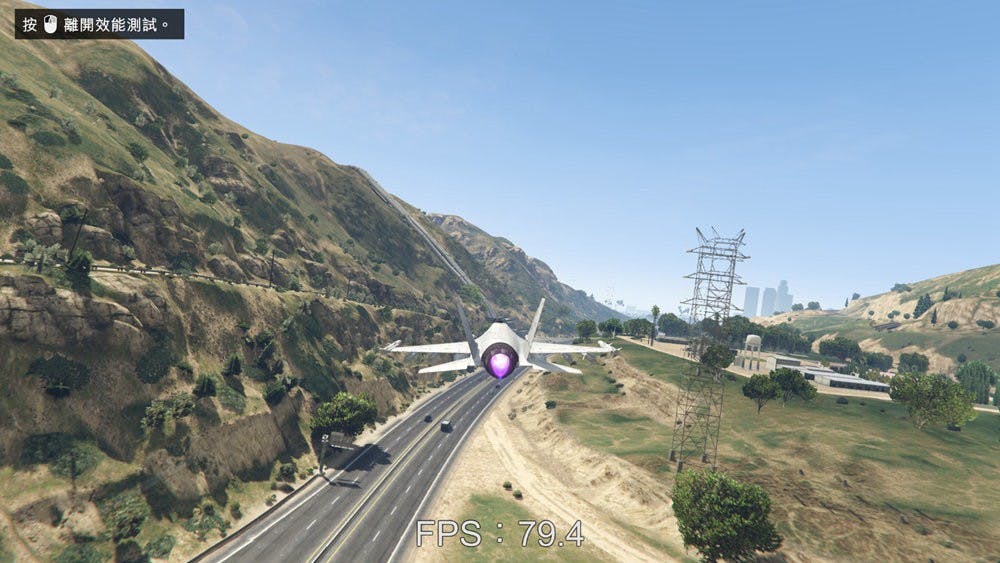

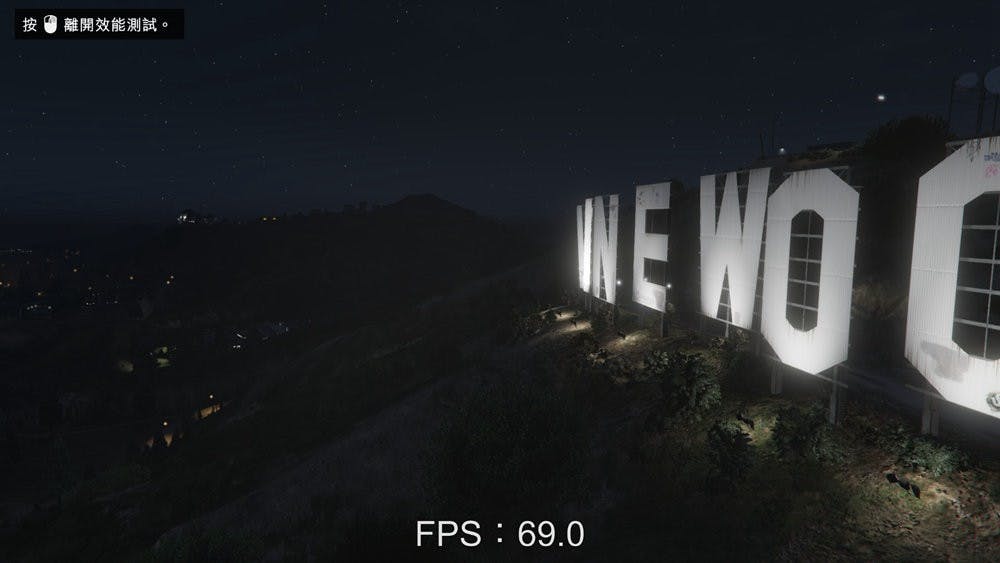

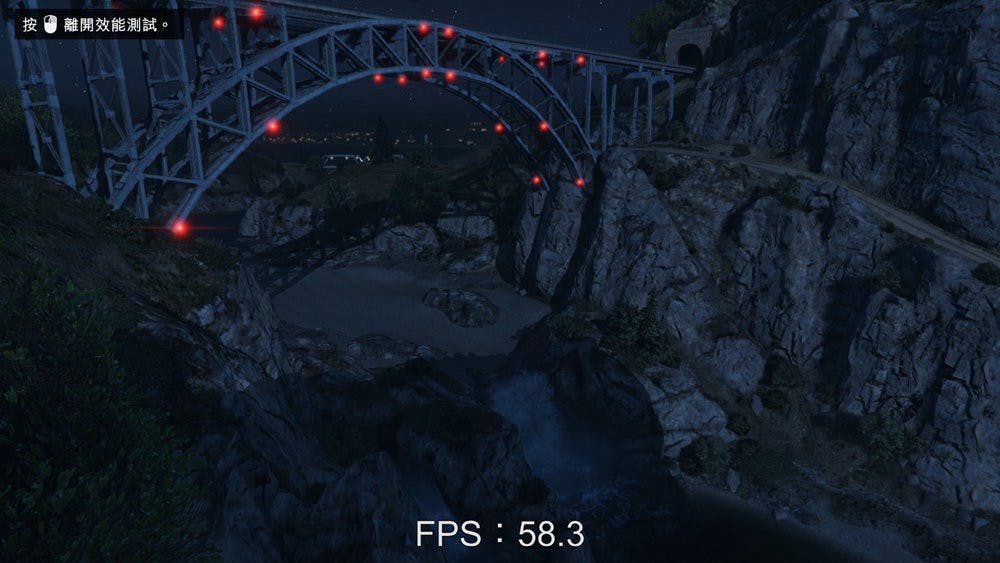

像是筆者透過 GTA V ,並將畫質等特效開啟到約中等,在 GTA V 的測試項目都能夠達到 60fps 以上的穩定性,這樣的表現已經是可媲美中階桌上型電腦,雖然說自組電腦有著更低的成本,不過體積方面就無法像 NUC8i7HVK 般的小巧。不過值得注意的是畢竟散熱設計屬於筆記型電腦的變形,在持續高負載的情況還是會將核心溫度逼到近百度。

Electronics Accessory, Product, Product design, Electronics, Design, Gadget, electronics accessory, product, technology, product, electronic device, electronics accessory, electronics, hardware, gadget

以當前市場最接近 NUC8i7HVK 的競品,應該屬華擎搭配 NVIDIA MXM GPU 的 DeskMini 系列,不過兩者還是有所不同, DeskMini 是搭配標準的桌上型電腦處理器,同時需要自己選擇散熱器,功耗也高出許多,但換來更好的性能與內部可安裝更多儲存裝置(與可搭配 2.5 吋硬碟)的可能性,應該視為更進階的版本。

Wireless router, Router, Electronics Accessory, Ethernet hub, Electronics, Ethernet, Product, Electronic Musical Instruments, Product design, Multimedia, router, technology, electronic device, product, router, electronics, electronics accessory, multimedia, wireless router, ethernet hub, product

就事論事, NUC8i7HVK 以性能以及價格衡量的投資報酬率絕對無法稱得上划算,但它的優點就是在有限的體積具備一定程度的效能表現,除了娛樂外亦可負擔一定等級的影像編修、 3D 繪圖(基本上就是一台中高等級電競筆電的水準);至於儲存的問題,則可考慮透過 Thunderbolt 3 或是 USB 介面搭配外接硬碟解決無法內接 2.5 吋硬碟的情況。

Electronics Accessory, Product design, Electronics, Multimedia, Product, Design, electronics accessory, technology, electronic device, electronics accessory, electronics, multimedia, product

不過以當前 AMD 與 Intel 的情況,似乎很難預料像是 i7-8809G 這樣的跨品牌合作產物是否會有下一代,畢竟這項產品發表不久, Intel 就挖角了原 AMD RTG 部門的 Raja Koduri ,並由其負責 Intel 旗下 GPU 的發展,恐對雙方的合作關係造成一定程度的衝擊,加上 AMD 推出 Zen 架構後雙方在 CPU 的戰火也越演越烈,不無可能成為空前絕後的合作案。
