硬科技:一起在伺服器市場慢慢擠牙膏的IBM與Intel

有時候真的會覺得,「擠牙膏」是一種像殭屍病毒一樣會急速傳染的行為模式,很可怕,真的很恐怖。

2016年八月的HotChips和2017年四月CoolChips 20的IBM:地球上最強大的伺服器處理器Power9。

參考文章:IBM Power 9處理器解析 地球上最強大泛用處理器

IBM AIX, , IBM POWER microprocessors, IBM High Availability Cluster Multiprocessing, IBM, Database, Computer Software, IBM Power Systems, Kinetica, , cognitive appraisal model of coping, text, product, diagram, line, technology, area, font, product, brand, graphics, IBM DB2

Document, Line, Point, Angle, , Asus, Black, , IndosatM2, Brand, asus, text, font, line, black and white, area, product, document, paper, angle, number, Asus, Adesign, IndosatM2, IBM

2017年八月HotChips 29的Intel:Skylake微架構的Xeon。

Intel, Network function virtualization, , Threading Building Blocks, ASUS Transformer Book T100, C-RAN, , Intel Atom, Software-defined networking, Virtualization, asus transformer book t100taf dk076t - atom 1.33 ghz - 10.1

2018年八月HotChips 30的IBM與Intel:繼續冷飯熱炒Power9和Skylake微架構的Xeon。

筆者也只能陪著這兩間大廠一起擠牙膏了,看看能擠出什麼有趣的花樣。

IBM AIX, , IBM POWER microprocessors, IBM, IBM Power Systems, IBM High Availability Cluster Multiprocessing, IBM Hardware Management Console, PowerVM, Logical partition, Database, IBM, product, diagram, area, line, technology, font, product, brand, graphics, angle

Byte, Presentation, Font, Image, Area, Byte, blue, text, product, font, product, line, online advertising, area, sky, brand, Intel Core i7, Essonne Info

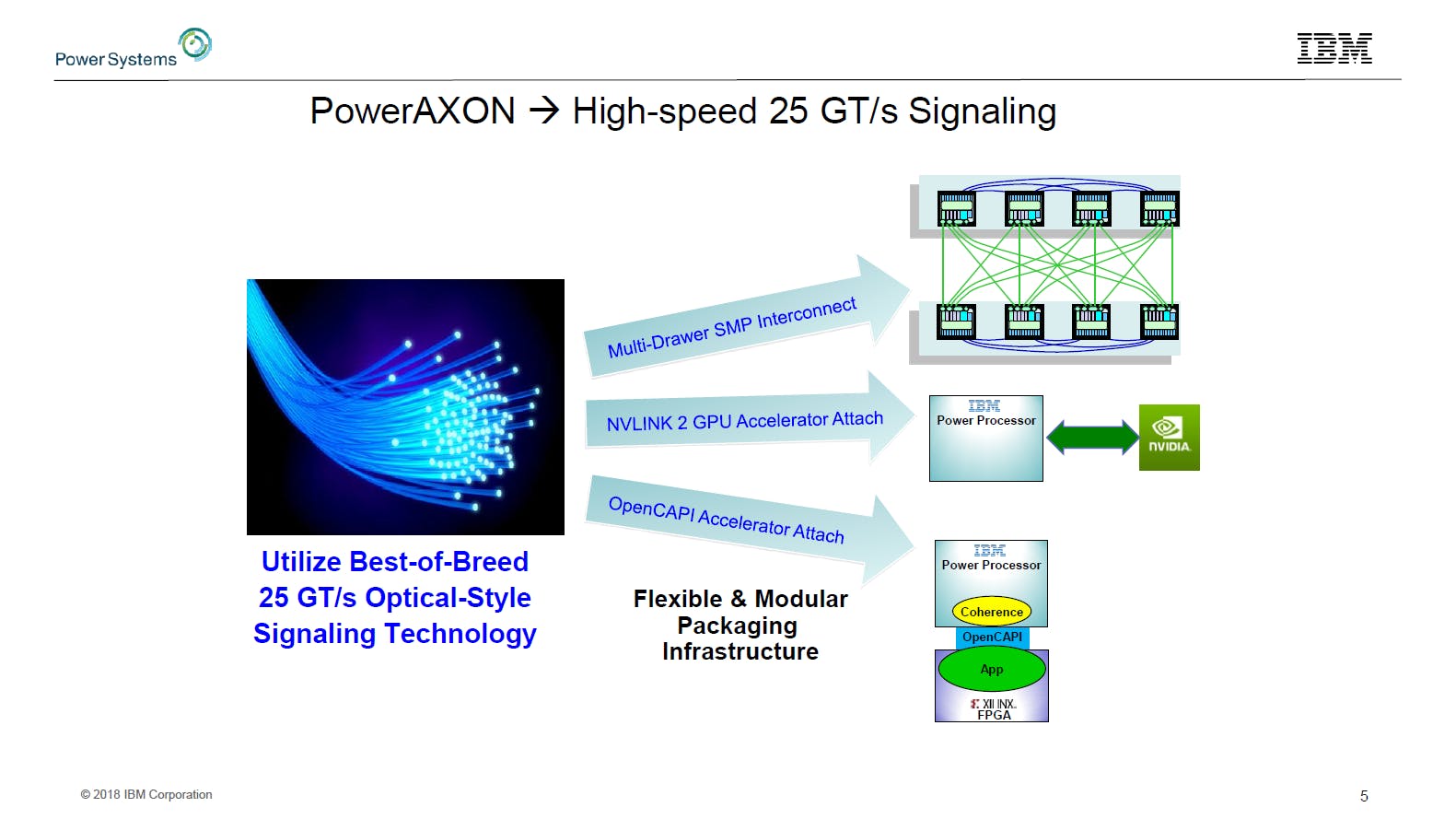

花了一年多時間創造行銷名詞的IBM:Power9的25GT/s高速I/O統稱為「PowerAXON」

PowerAXON = Power with A-bus, X-bus, OpenCAPI, and NVLink.

總之,IBM就把300GB理論雙向頻寬的48 Lane 25G「Bluelink」改了一個更響亮的行銷名詞,各位科科有沒有一股想要立即跳出網頁的衝動?

Hot Chips, IBM, , POWER9, , IBM POWER microprocessors, Central processing unit, Computer, Intel, POWER10, IBM, text, technology, product, line, area, font, product, multimedia, computer icon, operating system, IBM DB2

不過一般讀者甚少有機會接觸到這些超旗艦等級的高效能處理器,各位科科還是可以瞧瞧這個「PowerAXON」帶來何等強大的擴充性。

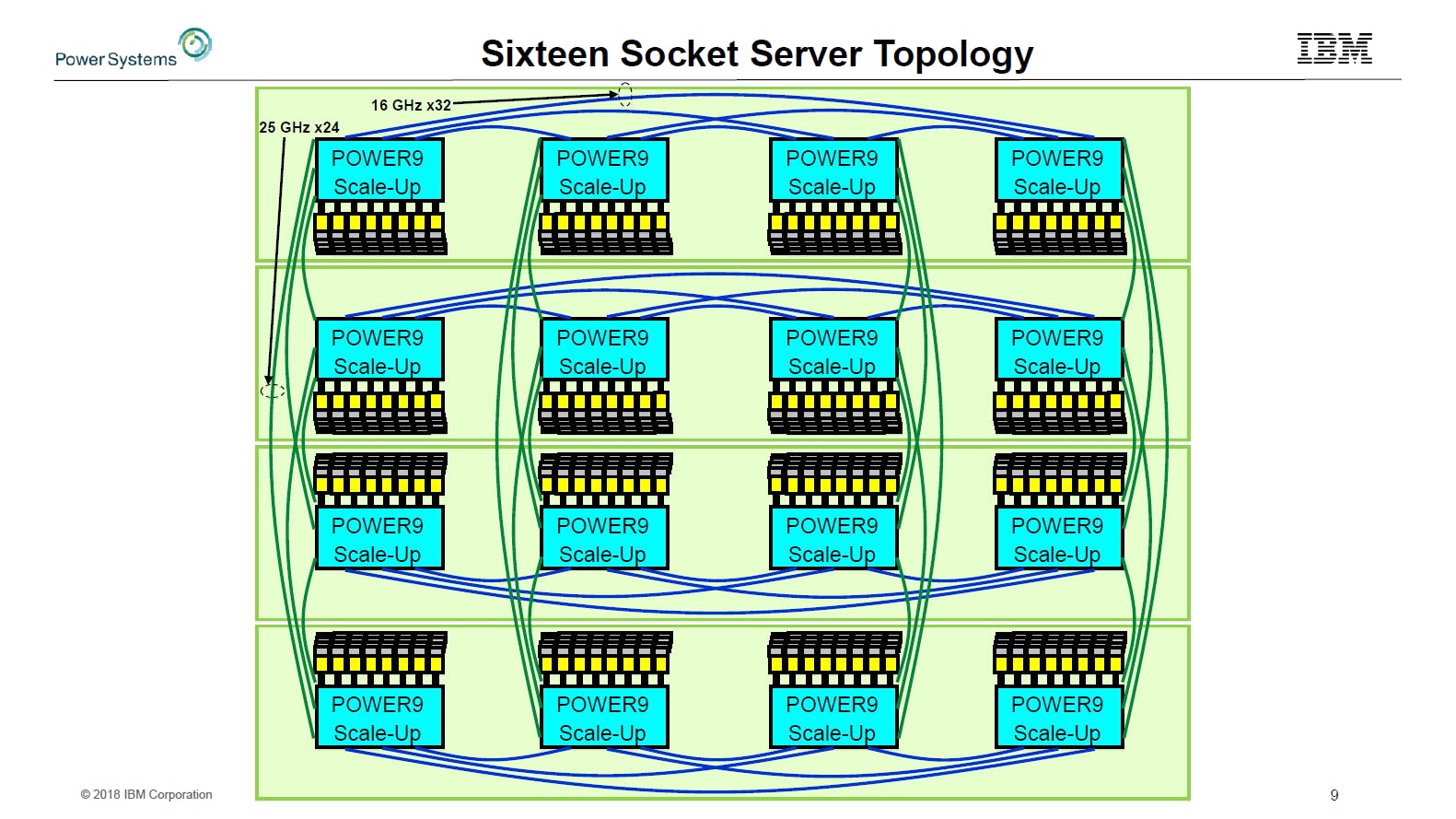

連接多處理器的Scale-Up環境:

Hot Chips, POWER9, IBM POWER microprocessors, IBM, , Central processing unit, Integrated Circuits & Chips, POWER10, , IBM Power Systems, IBM, text, product, line, product, area, technology, font, brand

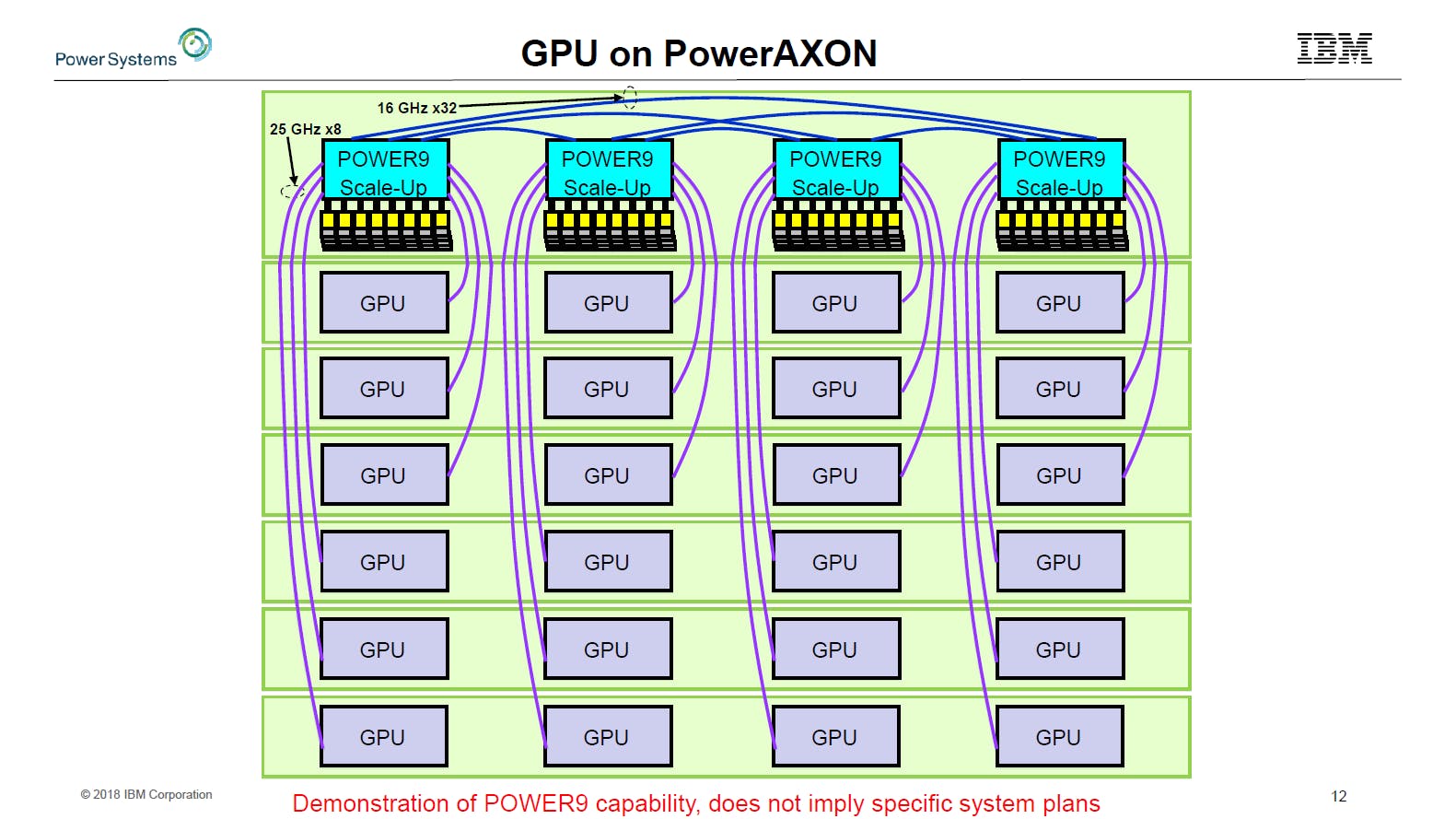

作為NVLink 2.0連接大量NVIDIA繪圖晶片:

POWER9, , Hot Chips, IBM, Central processing unit, Input/output, Graphics processing unit, NVLink, , DDR4 SDRAM, POWER9, text, line, area, font, product, angle, software, diagram

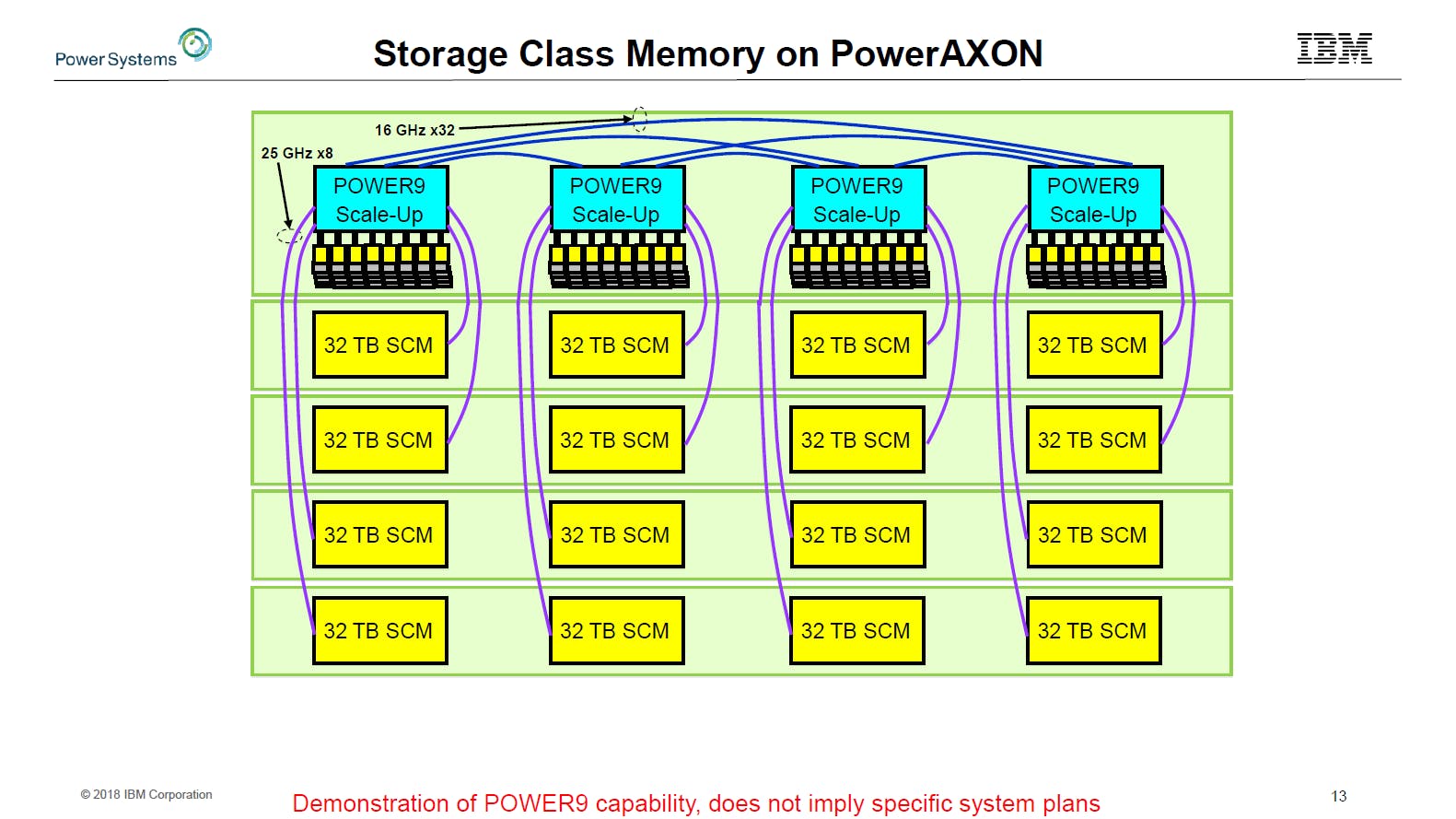

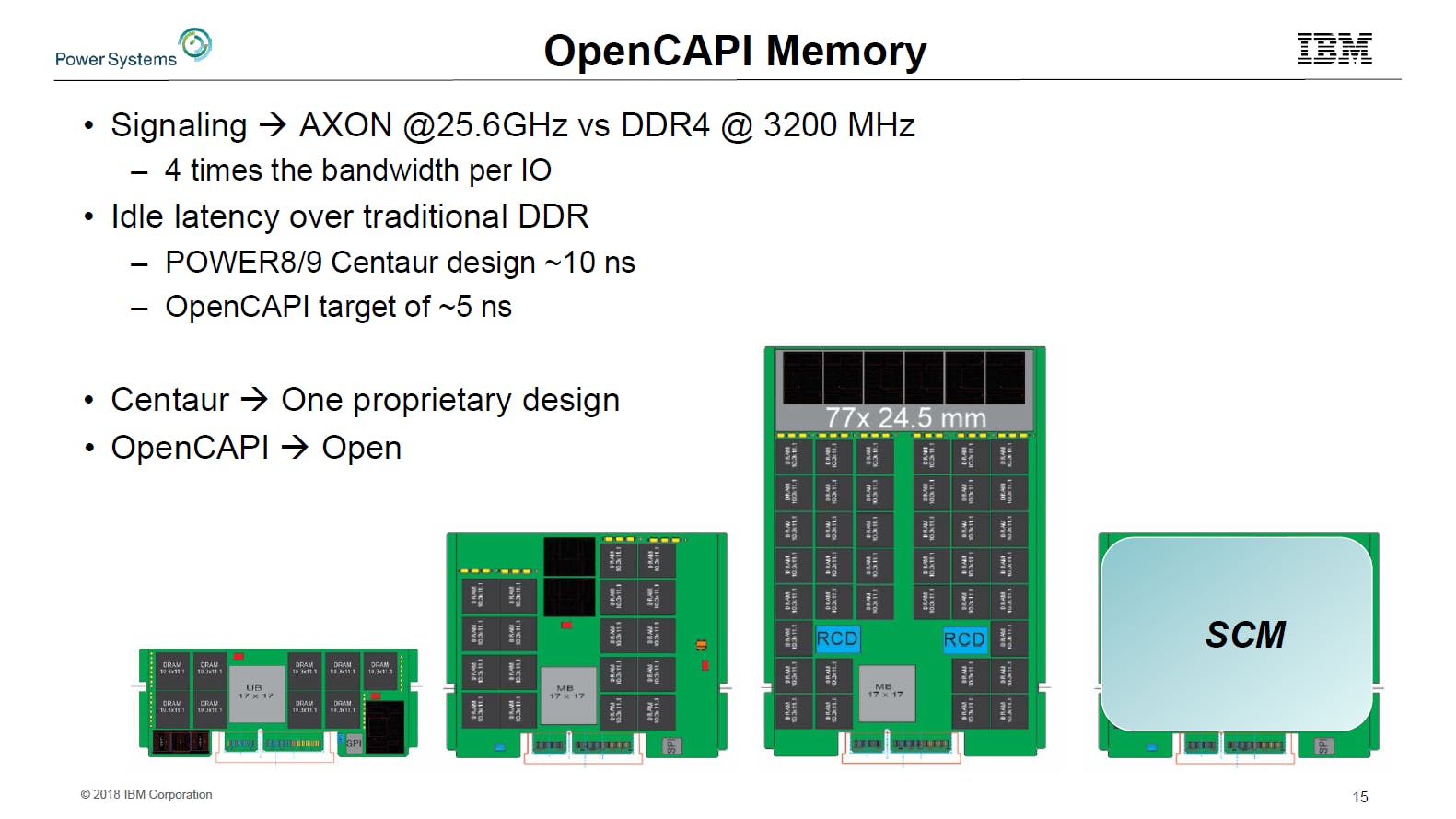

作為OpenCAPI、透過SCM (Storage Class Memory) 擴充DDR4主記憶體容量:

POWER9, , Hot Chips, IBM POWER microprocessors, IBM, Central processing unit, Input/output, NVLink, , DDR4 SDRAM, POWER9, text, product, line, area, font, product

Hot Chips, POWER9, IBM POWER microprocessors, Central processing unit, Integrated Circuits & Chips, IBM, , Multi-core processor, POWER8, NVLink, POWER9, text, product, technology, communication, area, line, font, brand, diagram, multimedia

基本上,看到這些令人匪夷所思的「超高規格」以及讓人連想都不敢想像的高昂價格,除了只能跪跟拜,好像也不能作什麼事情了。

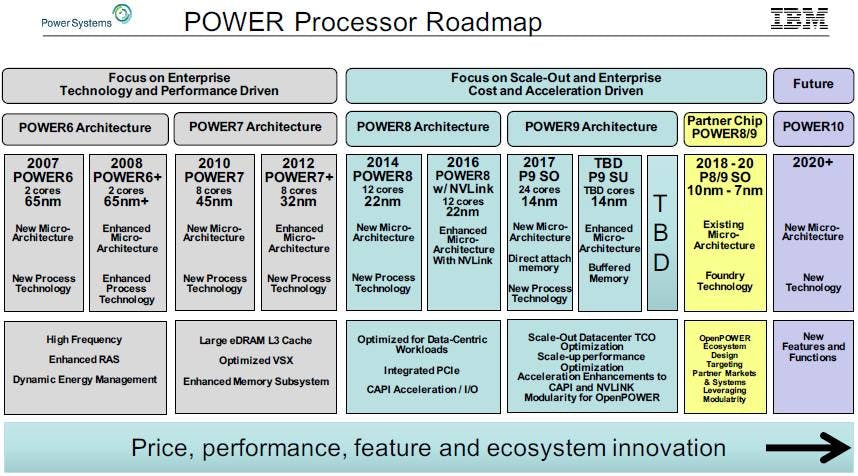

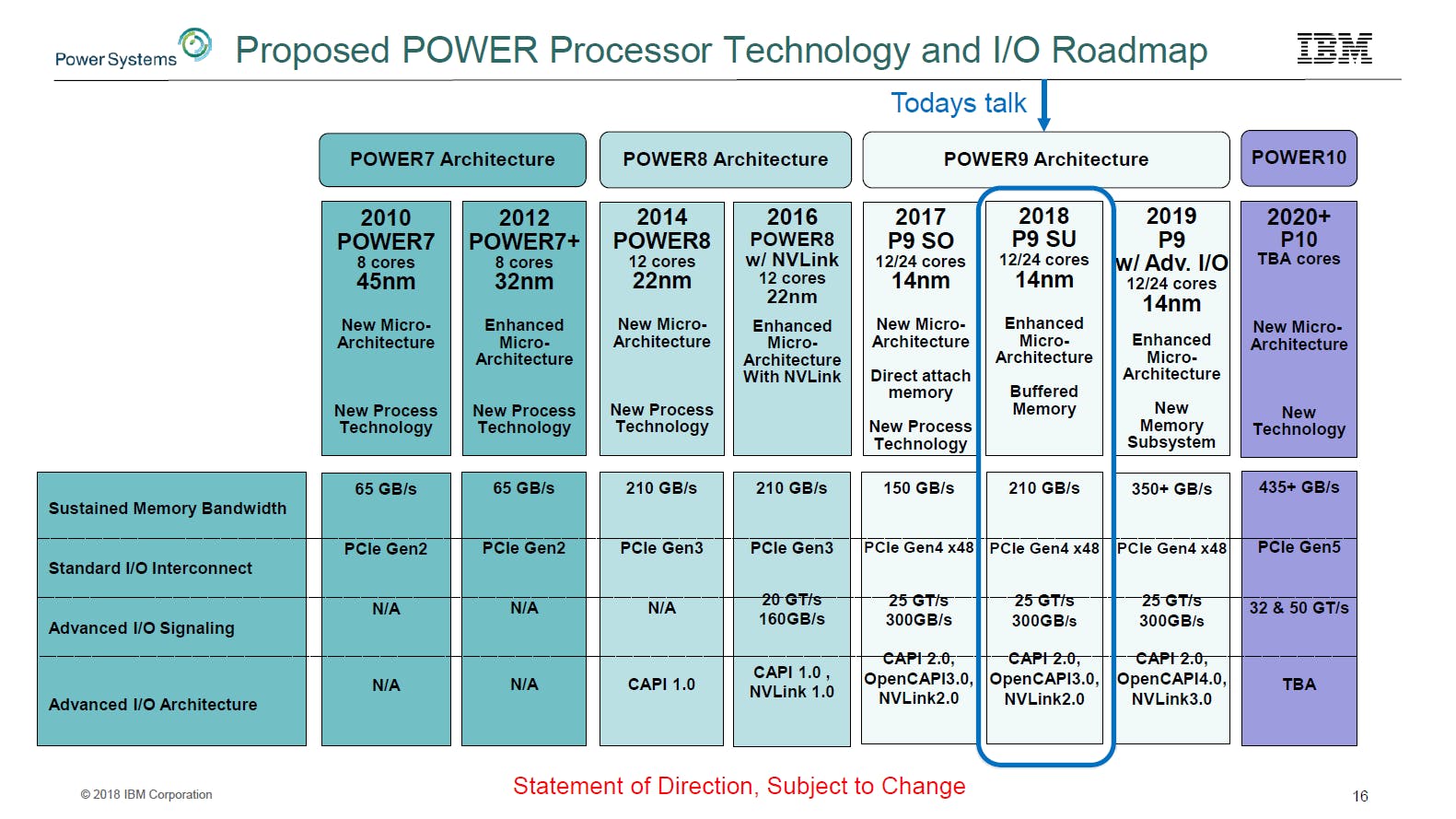

原來去年發表的是Power9 SO (Scale-Out),今年的是Power9 SU (Scale-Up),看來還有擴充更先進I/O和記憶體子系統的Power9可以慢慢擠,期待大家明年再相會,繼續看著藍色巨人表演擠牙膏。

但說到擠牙膏,還有另一家更專業、各位科科絕對耳熟能詳的大廠,雖然他們好像也快擠不出什麼東西來了。

Hot Chips, POWER9, IBM POWER microprocessors, 7 nanometer, Integrated Circuits & Chips, Central processing unit, , IBM, Multigate device, , Hot Chips, text, font, line, area, product, diagram, screenshot, number

Intel Skylake-SP的後繼者:「Apache Pass」總算被擠出來了

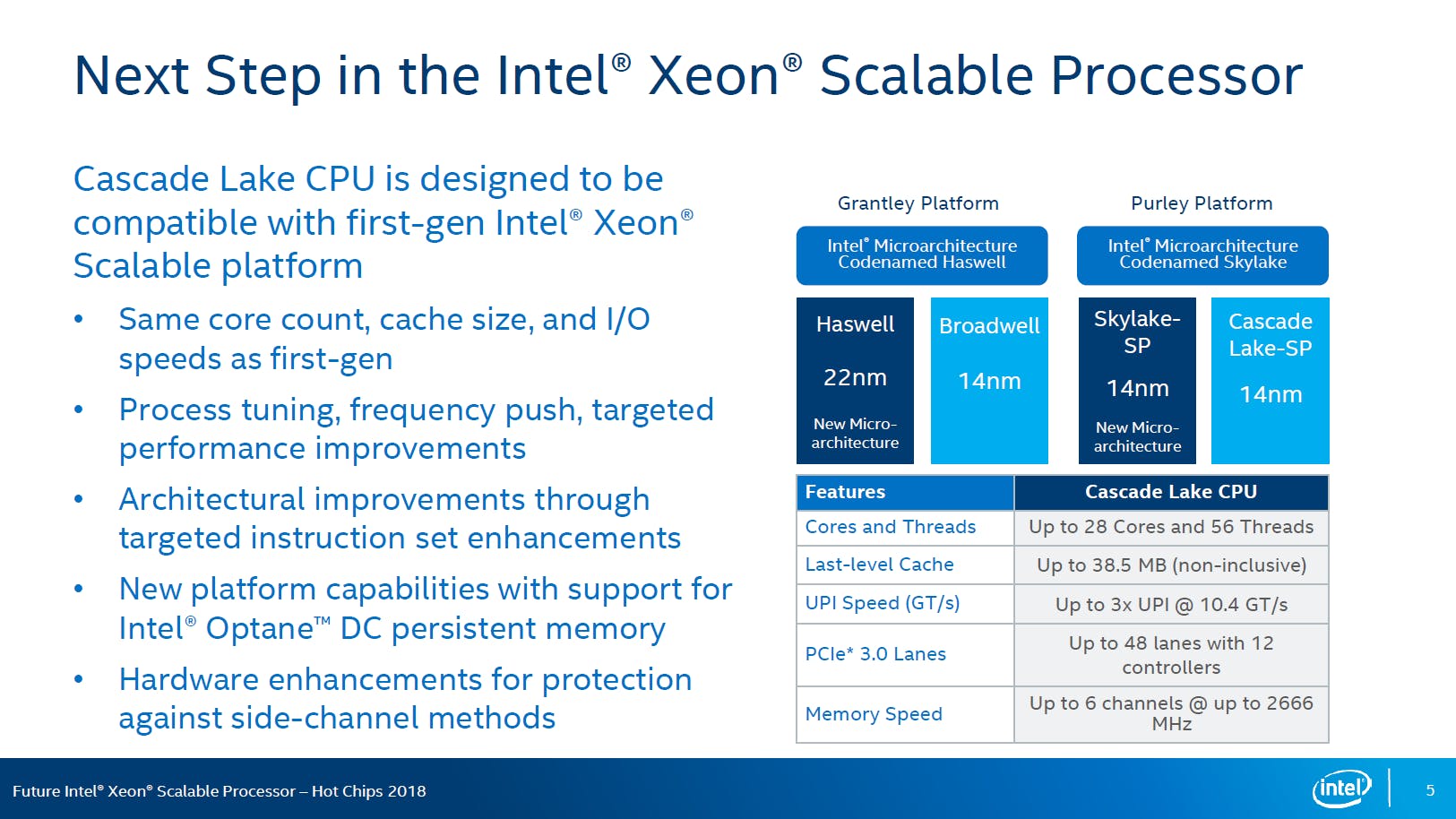

號稱「集Intel x86伺服器技術大成」的Skylake-SP「Purley」平台,早在2017年七月發布,並遭受AMD EPYC的猛烈狙擊。今年的Cascade Lake-SP僅為Skylake-SP的微幅改版,基本上改進了三個地方:

  • 原本Skylake-SP就應該支援的「Apache Pass」:採用Optane (原名 3D Cross Point)技術的非揮發性記憶體模組「Optane DC」。
  • AVX-512指令集的VNNI擴充:強化短整數運算效率,增強人工智慧和深度學習的應用。
  • 針對先前因處理器預測執行而導致的安全性漏洞,追加防範措施。

Intel, Cascade Lake, , Xeon, Central processing unit, Computer hardware, 14 nanometer, Spectre, Coffee Lake, Processor, Cascade Lake, text, font, product, line, product, area, organization, angle, online advertising, number

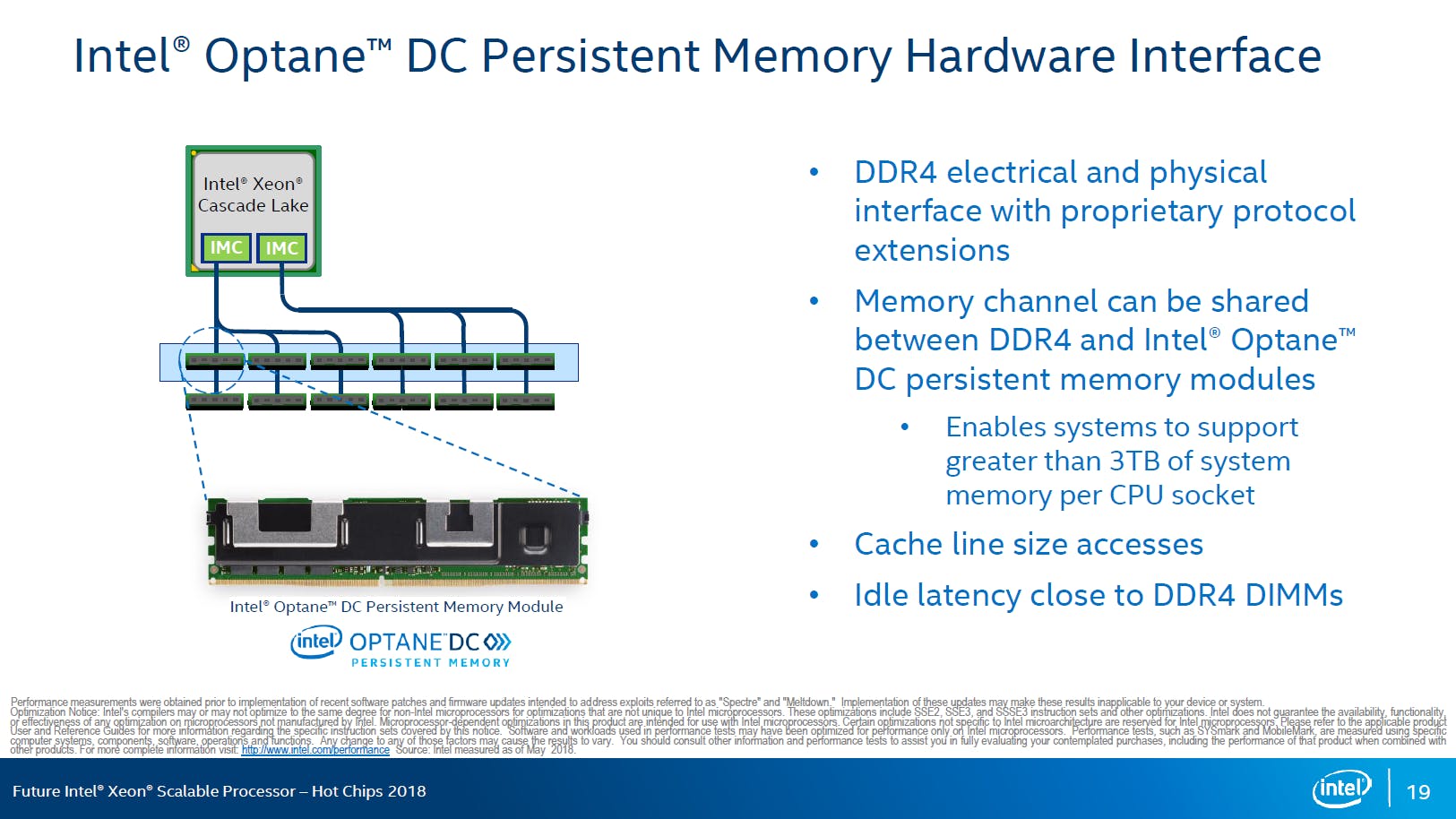

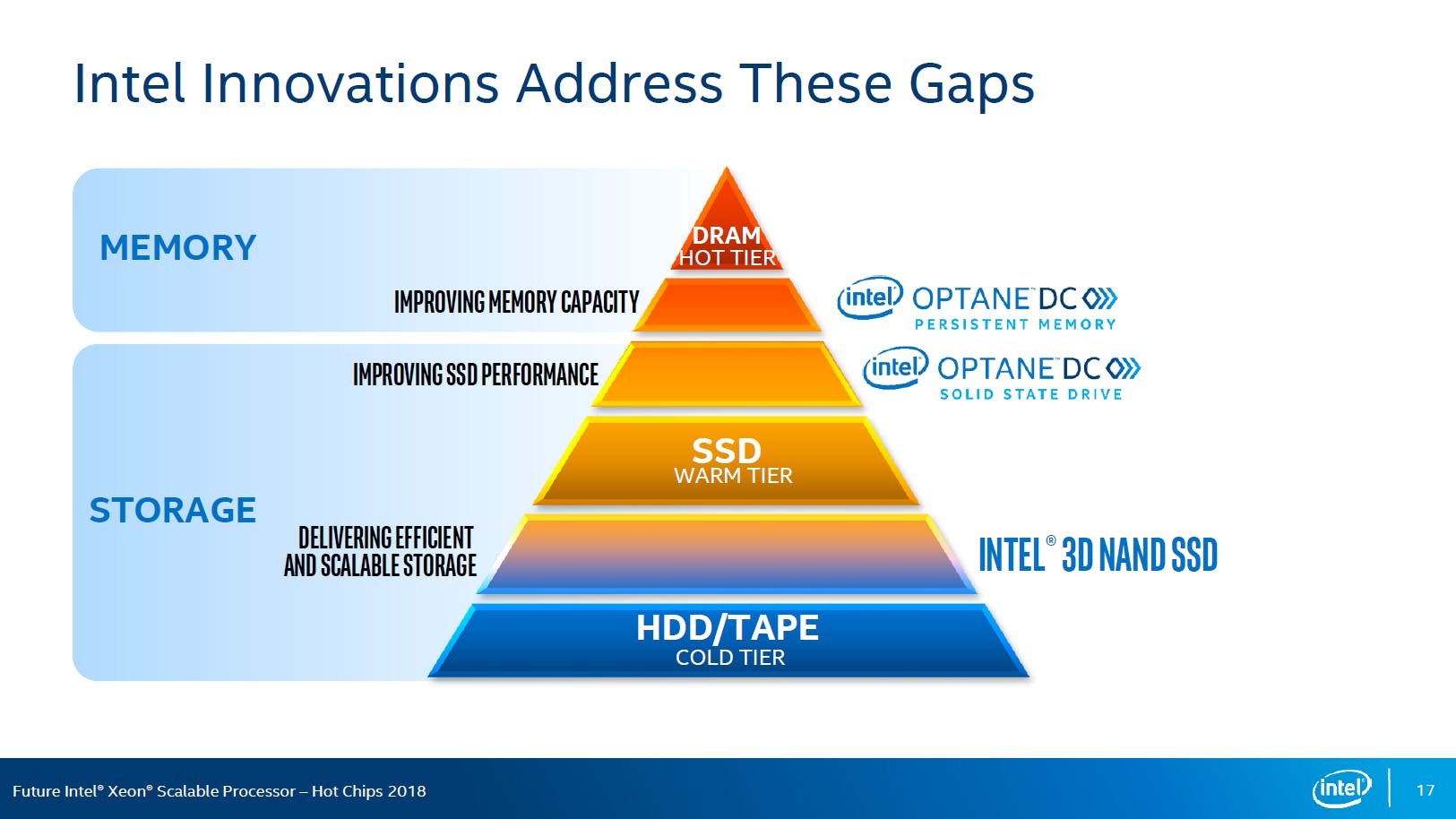

Optane DC可作為「速度較慢、容量更大、不怕斷電」的主記憶體或超高速SSD之用。其實新世代高效能非揮發性記憶體的應用,是一個非常有趣的主題,留待日後有機會再深入探討。

Intel, Cascade Lake, Central processing unit, Xeon, , Computer hardware, Integrated Circuits & Chips, AnandTech, Data, Computer, organization, text, line, technology, area, product, font, organization, engineering

Intel, Cascade Lake, , Central processing unit, Hot Chips, Xeon, Computer, 14 nanometer, Processor, Integrated Circuits & Chips, Processor, text, product, line, diagram, area, font, product, brand, organization

參考文章:硬科技:Intel邁向人工智慧晶片的一小步:Knights Mill

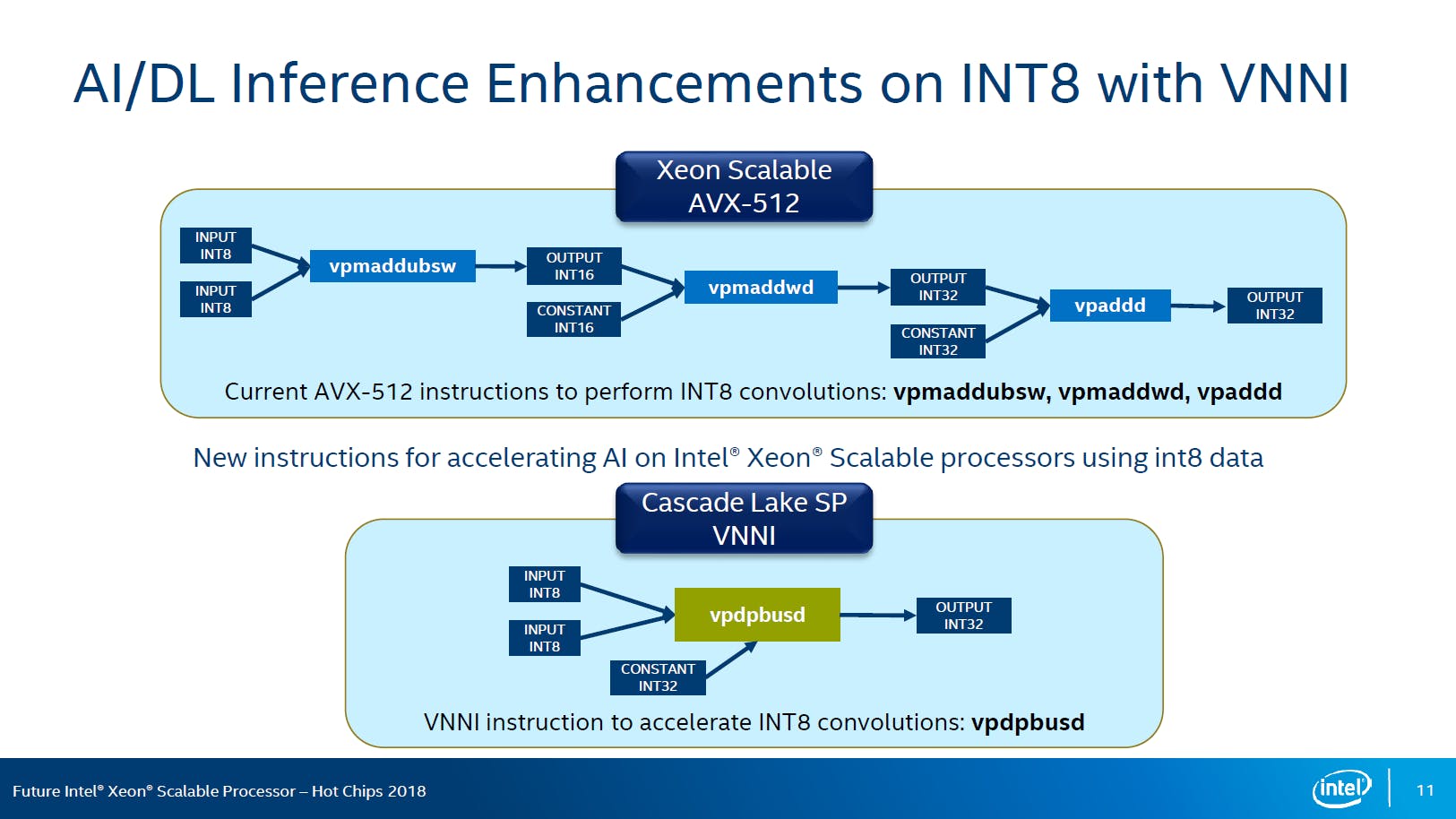

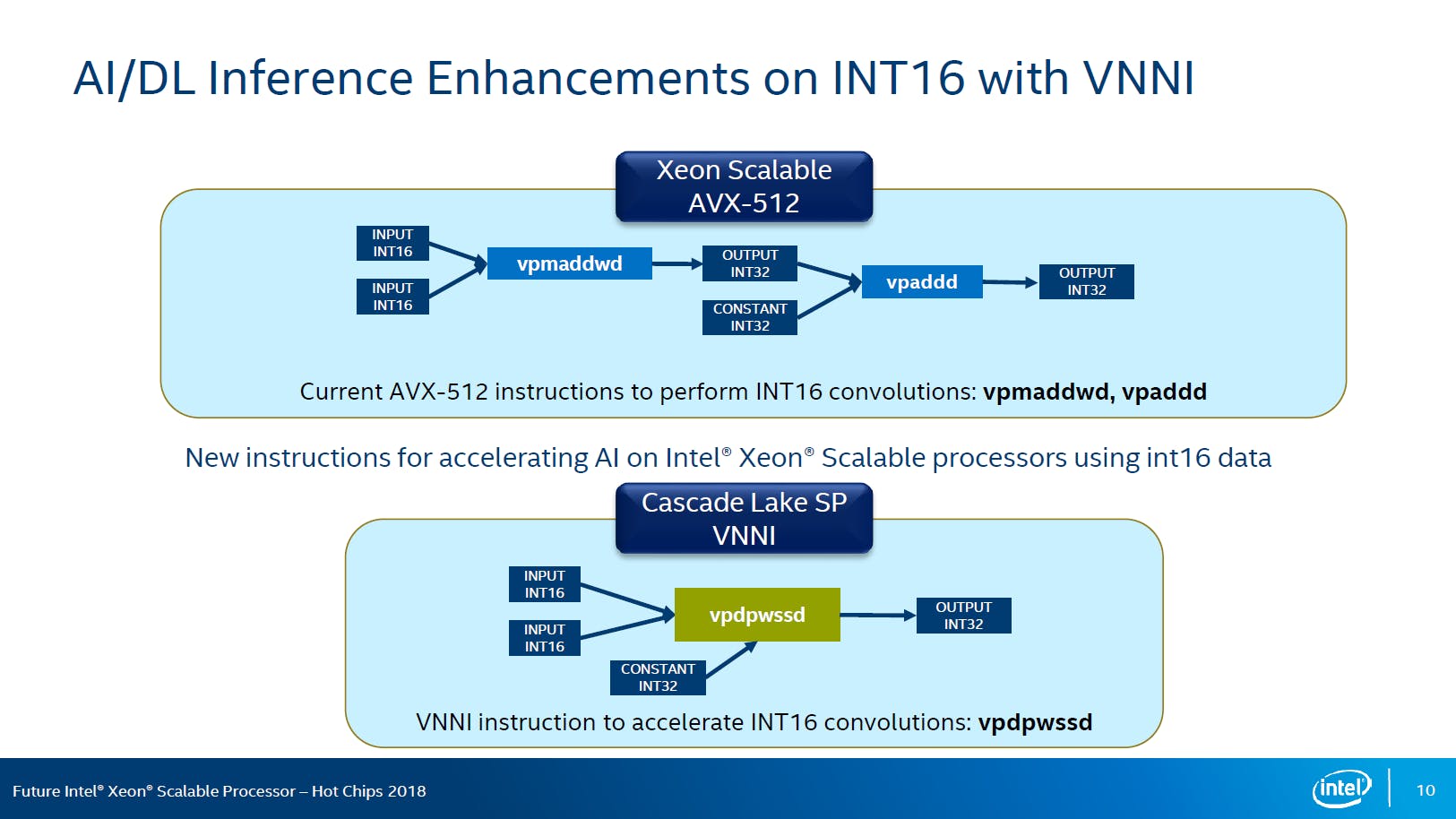

「新」AVX-512指令集的VNNI強化了短整數的運算效能,更適用於人工智慧與深度學習。

Intel, Cascade Lake, Xeon, Central processing unit, , Integrated Circuits & Chips, Advanced Micro Devices, , Computer hardware, AnandTech, organization, text, line, font, product, area, organization, number, diagram, online advertising, angle, Partnership

Intel, Cascade Lake, Xeon, Central processing unit, , Computer hardware, Skylake, Ice Lake, Integrated Circuits & Chips, AnandTech, Cascade Lake, text, line, font, product, area, organization, diagram, number, online advertising, angle

參考文章:

硬科技:被Intel處理器漏洞嚇傻前 科科們要先知道的事(上)
硬科技:被Intel處理器漏洞嚇傻前 科科們要先知道的事(中)
硬科技:被Intel處理器漏洞嚇傻前 科科們要先知道的事(下)

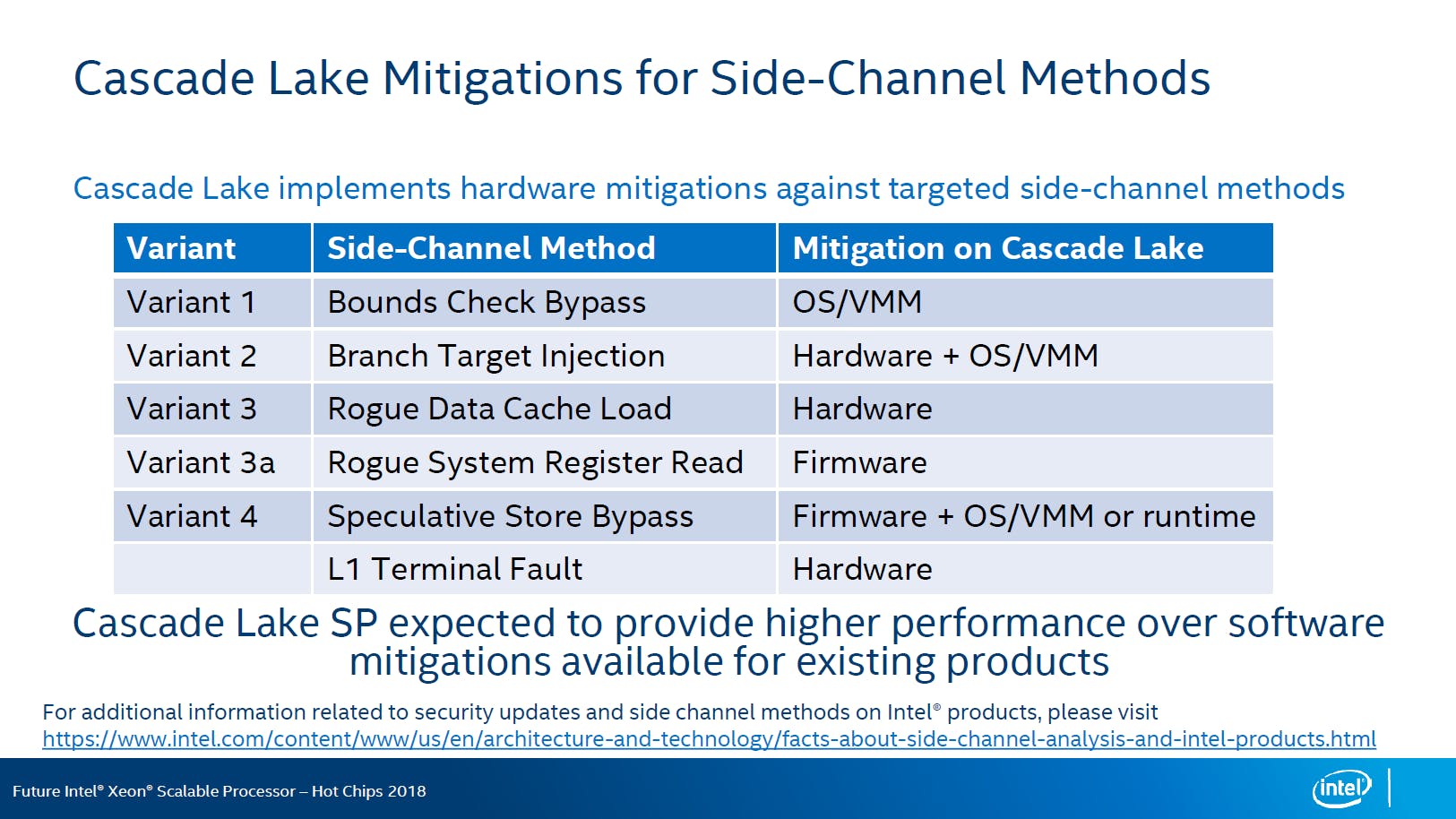

對於因預測執行機制而衍生的諸多處理器漏洞,Intel在Caslake Lake-SP也做出了亡羊補牢的補強措施,但實際效果如何,包括Intel和Google,大概也沒人希望受到真正的考驗吧。

Intel, Cascade Lake, , Computer hardware, Central processing unit, Xeon, 14 nanometer, Processor, Hot Chips, Microprocessor, cascade lake intel, text, line, font, product, area, angle

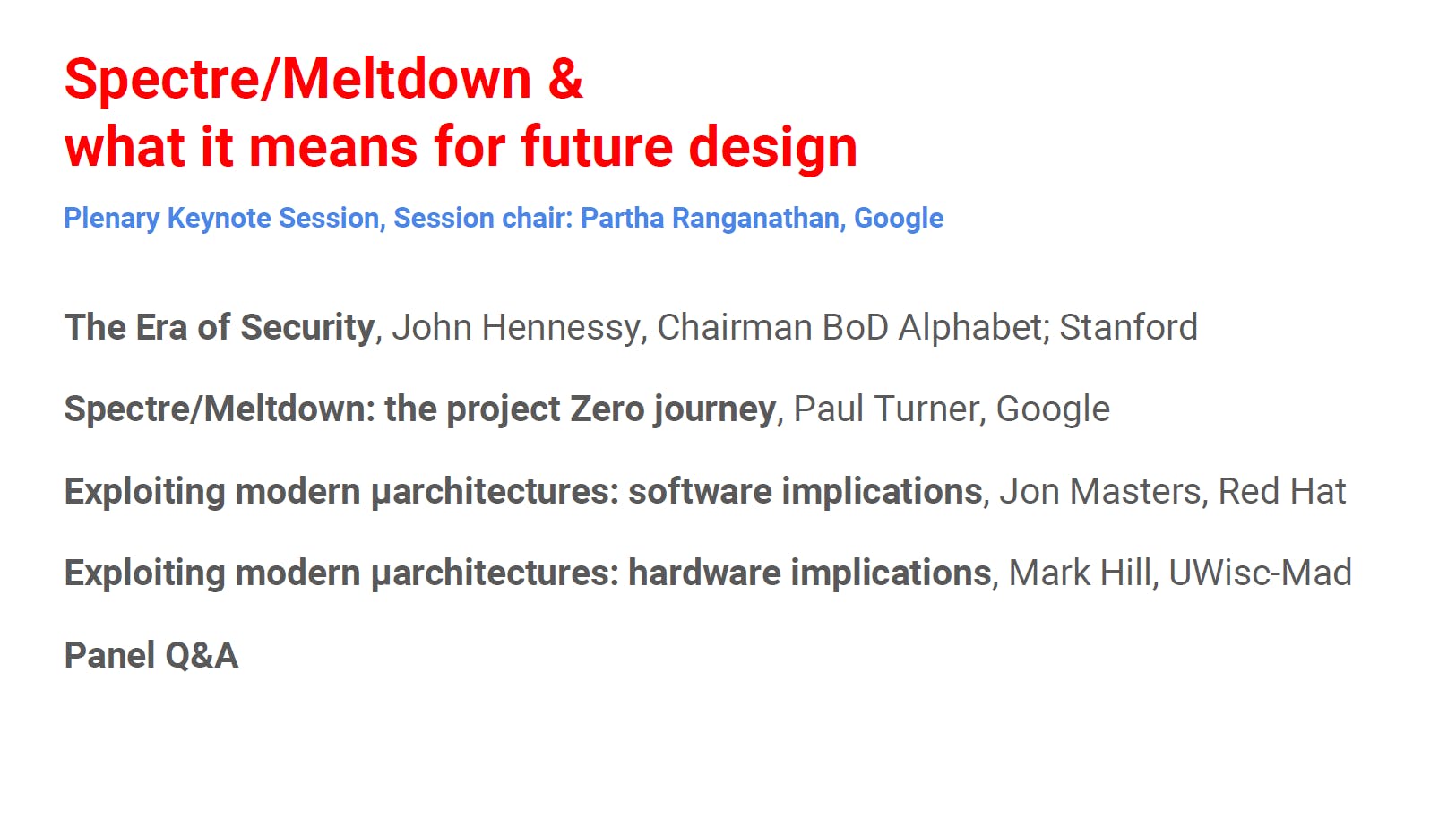

值得注意的是,在HotChips 30,有一場時間長達一小時45分、簡報多達70頁的主題演講 “Spectre/Meltdown & What it means for future design”,主講者包括資訊科班無人不知的RISC大師John Hennessy與揭發Intel處理器漏洞的Google員工。這主題有點複雜,希望筆者以後有動力可以「補完」這個失落的環節。

, Trainspotting, Line, Point, Product, Angle, Choose Life, Font, Trainspotting, Choose Life, trainspotting choose life, text, font, line, area, product, angle

行文至此,看著滿滿的過往文章被「重見天日」,筆者都覺得自己在擠牙膏了,真是太可怕了,這麼糟糕的行為,各位科科千萬不要學啊。

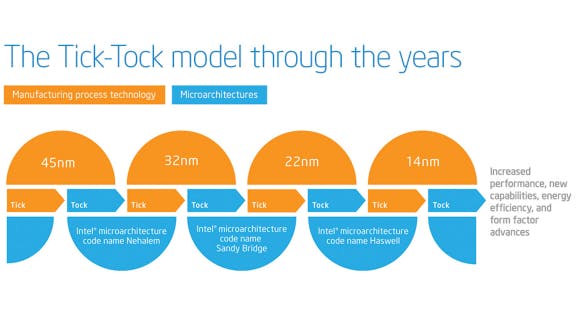

但為何IBM與Intel會從當年「小步快跑」的Tick-Tock (鐘擺),演變成今天的擠牙膏大賽,究竟是製程技術遭遇瓶頸、在製程研發過度投資、還是市場本來就不需要如此頻繁的產品更迭,就值得各位科科多多想想了。

POWER9, SPARC, Computer Servers, Computer hardware, OpenPOWER Foundation, IBM POWER microprocessors, Central processing unit, , IBM, , SPARC, text, font, line, area, product, material, diagram, number

Intel, Tick–tock model, Kaby Lake, , Central processing unit, Moore's law, Microprocessor, Haswell, Integrated Circuits & Chips, Ivy Bridge, intel tick tock, text, product, font, line, product, diagram, area, online advertising, organization, communication, Intel 4th Generation
